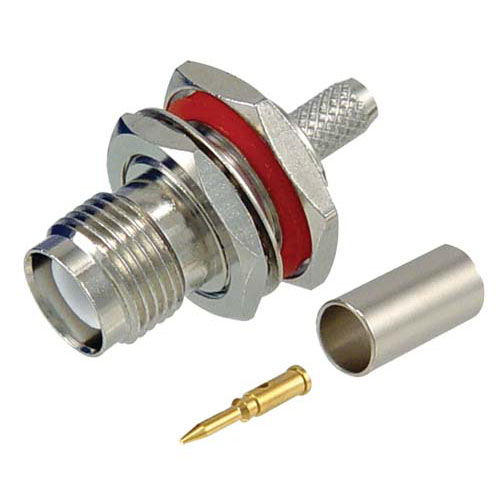

RP-TNC Bulkhead Jack for RG58, 195-Series Cable

SKU ARTJ-3702
Available to Ship 1873
Quantity Price
1 - 24 $8.19
25 - 49 $7.37
50 - 99 $6.55
100 + Call Us
Price $8.19

All Prices are in US Dollars and do not include duties



The Reverse Polarity TNC Bulkhead Jack from L-com is designed for RG58 and 195-series Cable. The ARTJ-3702 takes advantage of its bulkhead design to ensure that engineers or technicians will not have to worry about poor sealing after installation. This connector is compatible with RG58, RG141, RG142‚ WBC--195‚ LMR®195‚ Belden 8240 and Belden 8219 cable types. Order online today!

Features
  • Can be used with RG58/141/142‚ HyperLink CA195RW‚ WBC195‚ LMR®195‚ Belden 8240/8219 cable types

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN
  • RF Applications


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
TNC
Connector Gender
Jack
Impedance
50 Ohm
Body Style
Straight
Mount Method
Bulkhead
Minimum Frequency
DC
Maximum Frequency
4 GHz
Interface Type 1
RG58
Interface Type 2
195-Series
Interface Type 3
RG141
Interface Type 4
RG142
Interface Type 5
WBC195
Interface Type 6
Belden 8240
Interface Type 7
Belden 8219

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
