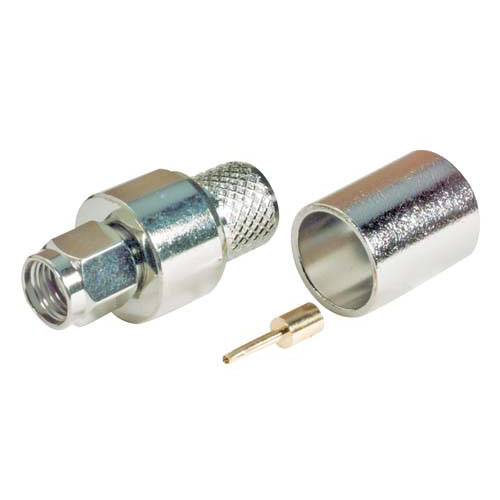

RP-SMA Plug Crimp for RG8, 400-Series

SKU ARSP-1404
Available to Ship 8499
Quantity Price
1 - 24 $10.59
25 - 49 $9.53
50 - 99 $8.47
100 + Call Us
Price $10.59

All Prices are in US Dollars and do not include duties



This Reverse Polarity SMA plug is designed for WLAN, Wireless and RF applications. The ARSP-1404 takes advantage of its gold plated center contact in defend against signal loss. This connector is compatible with RG8‚ WBC--400‚ LMR®400‚ Belden 9913 and Belden 7810 cable types. Other notable feature for this product are a cable retention of over 40 pounds as well as a VSWR under 1.5 at 6 GHz. Order online today!

Features
  • Can be used with RG8‚ WBC400‚ LMR®400‚ HyperLink CA-400, Belden 9913, 7810 cable types

Application
  • RF Applications
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
RG8
Interface Type 2
WBC400
Interface Type 3
Belden 9913
Interface Type 4
Belden 7810

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
