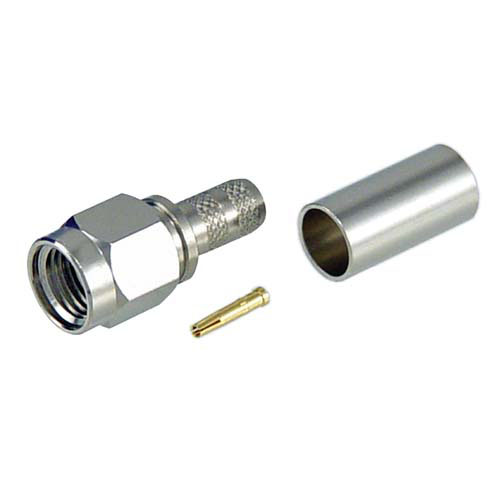

RP-SMA Plug Crimp for 195-Series Cable

SKU ARSP-1700
Available to Ship 1004
Quantity Price
1 - 24 $1.19
25 - 49 $1.07
50 - 99 $0.95
100 + Call Us
Price $1.19

All Prices are in US Dollars and do not include duties



Reverse Polarity SMA Plug (RP-SMA Plug) connectors for 50 Ohm RG cable types of RG58, RG174, RG188, RG316 and 100, 195, 200, 240 and 400 Series Low Loss cables. All connectors utilize a crimp attachment process for a strong and effective attachment.

Features
  • Can be used with L-com CA-195R, RG58/141/142, L-com CA195RW, WBC195, LMR®195, Belden 8240/8219 cable types

Application
  • RF Applications
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
195-Series
Interface Type 2
CA-195R
Interface Type 3
RG141
Interface Type 4
RG142
Interface Type 5
CA-195RW
Interface Type 6
WBC195
Interface Type 7
Belden 8240
Interface Type 8
Belden 8219

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
