RP-MMCX Crimp Right Angle for LMR 100, RG174/188/316 Cable

SKU ARMMP-1100
Available to Ship 213
Quantity Price
1 - 24 $3.63
25 - 49 $3.27
50 - 99 $2.90
100 + Call Us
Price $3.63

All Prices are in US Dollars and do not include duties

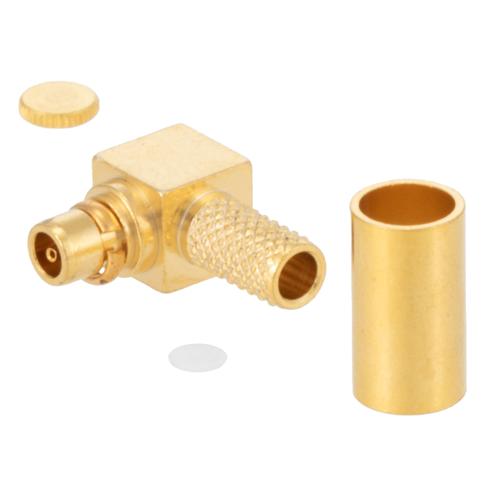

The right angle ARMMP-1100 is a Reverse Polarity MCX plug for LMR®100, RG174, RG188, and RG316 Cable that is a crimp termination style from L-com. Taking advantage of the right angled orientation of the connector, this MCX crimp connector is made for applications in Digital Cellular, WLAN and wireless networking. This connector is tested to MIL-Std. 202 for various environmental factors such as corrosion and vibration. The ARMMP-1100 can be used with RG316, RG174, RG188‚ WBC-100‚ LMR®100A and Belden 7805 cable types. Order online today!

Features
  • Can be used with RG316/174/188‚ WBC100‚ LMR®100A, Belden 7805 cable types

Application
  • Low Loss Coax Applications
  • Radio Pigtails
  • Wi-Fi Applications
  • WLAN
  • RF Applications


Product Resources

Key Specifications

Key Specifications

Polarity
Reverse Polarity
Connector Series
MMCX
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Right Angle
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
RG316
Interface Type 2
RG174
Interface Type 3
RG188
Interface Type 4
WBC100
Interface Type 5
Belden 7805

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
