Protective Chained Cap Terminator, SMA 50 Ohm

SKU USP-CTS50
QTY available 2048
Quantity Price
1 - 24 $16.19
25 - 49 $15.38
50 - 99 $14.57
100 + Call Us
Price $16.19

All Prices are in US Dollars and do not include duties

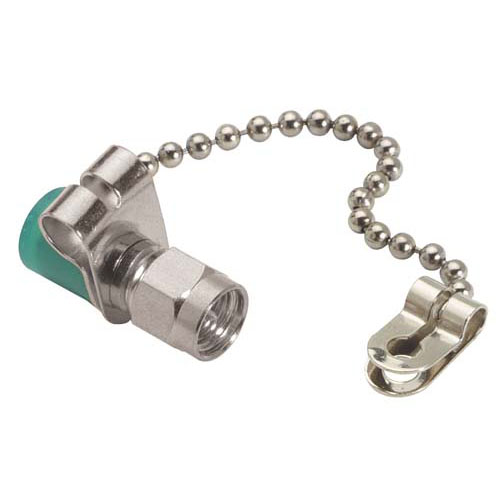

This SMA male terminator features a green color coded cap indicating a 50 Ohm resistance value. A retaining chain is also included to secure terminator and prevent loss.

Features
  • Termination of an 50 Ohm coaxial line
  • 1/4 Watt terminating resistor
  • Gold plated center contact for reduced signal loss
  • Retaining chain to prevent lost terminators when not used

Application
  • Cable management
  • LAN infrastructure
  • MDF/IDF applications
  • Network consolidation


Documents and Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
2 GHz
Maximum VSWR
2:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Body Material
Brass
Connector Series
SMA
Connector Gender
Male
Package Family
Coax
