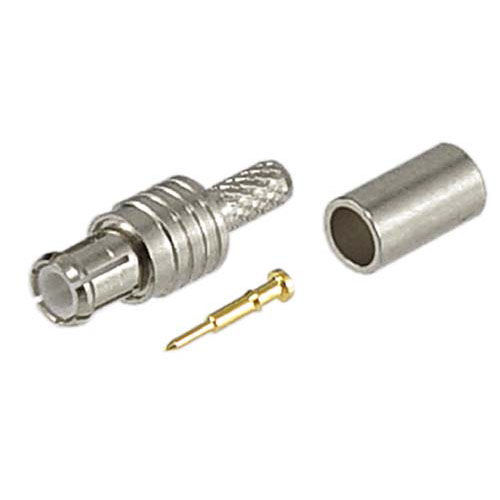

MCX Plug Crimp for RG316, 100-Series Cable

SKU AMM-1102
Available to Ship 1281
Quantity Price
1 - 24 $1.15
25 - 49 $1.04
50 - 99 $0.92
100 + Call Us
Price $1.15

All Prices are in US Dollars and do not include duties



The AMM-1102 is an MCX plug for RG316 and 100-series cable that is a crimp termination style from L-com. Taking advantage of the gold plated center contact, this MCX crimp connector is made for applications such as GPS, PCMCIA, Digital Cellular WLAN and wireless networking. This connector is designed for use with RG316, RG174, RG188‚ WBC-100‚ LMR®100A and Belden 7805 cable types. The small form factor ideally suited for high density applications and the snap on coupling mechanism simplifies the mating and unmating process. Order online today!

Features
  • Can be used with RG316/174/188‚ WBC100‚ LMR®100A, Belden 7805 cable types
  • Crimp style attachment results in a robust connector to cable attachment
  • Small form factor ideally suited for high density applications
  • Snap on coupling mechanism simplifies mating and unmating process

Application
  • Digital Cellular
  • PCMCIA
  • WLAN
  • GPS
  • WiFi


Product Resources

Key Specifications

Key Specifications

Polarity
Standard
Connector Series
MCX
Connector Gender
Plug
Impedance
50 Ohm
Body Style
Straight
Mount Method
None
Minimum Frequency
DC
Maximum Frequency
6 GHz
Interface Type 1
RG316
Interface Type 2
RG174
Interface Type 3
RG188
Interface Type 4
WBC100
Interface Type 5
Belden 7805

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
