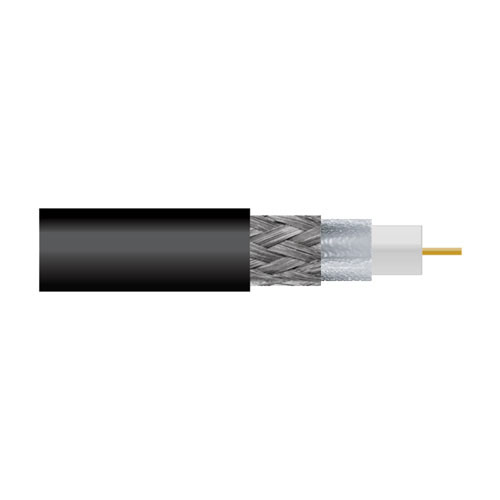

L-com CA-195R Coax Cable, By The Foot

SKU CA-195R-FOOT
QTY available 66619
Quantity Price
1 - 24 $1.48
25 - 49 $1.41
50 - 99 $1.33
100 + Call Us
Price $1.48

All Prices are in US Dollars and do not include duties



CA-195R series coaxial cable features excellent low loss characteristics and is ideal for shorter cable runs and "jumper" cables. The CA-195R features a fire retardant FR-PVC jacket. This cable is a high performance alternative to RG58 cable.

Features
  • Fire retardant FR-PVC jacket, meets UL-1581 VW-1 flame rating
  • Excellent low loss characteristics
  • High performance alternative to RG58 cable
  • High performance flexible coaxial cable construction
  • Please order carefully as cables by-the-foot are not returnable

Application
  • RF Pigtails
  • Wi-Fi installations
  • WLAN
  • RF antenna cable assemblies


Documents and Resources

Key Specifications

Key Specifications

Flex Type
Flexible
Impedance
50 Ohm
Dielectric Type
Foam PE
Velocity of Propagation
80 %
Jacket Diameter
0.195 in
Jacket Material
PVC
No. of Shields
2
Attenuation at 1 Ghz.
11.69 dB
RF Shielding
90 dB
Max Operating Temperature
60 deg C
Center Conductor Type
Solid
Inner Conductor, Number of Strands
1
Minimum Bend Radius, One Time
0.5 in
Coax Type
Coax
