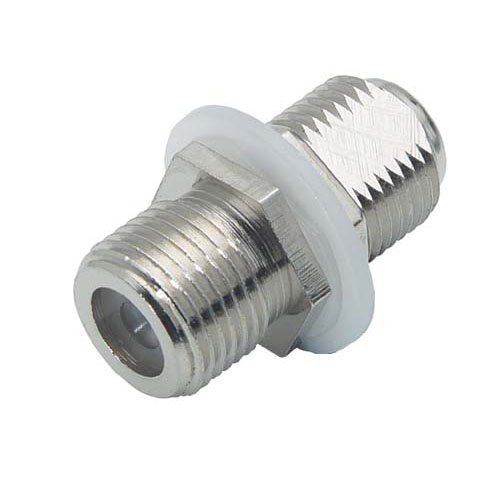

Coaxial Bulkhead Adapter, F Female / Female,75 Ohm (.5" D-Hole)

SKU BA330A
Available to Ship 454
Quantity Price
1 - 24 $3.53
25 - 49 $3.35
50 - 99 $3.18
100 + Call Us
Price $3.53

All Prices are in US Dollars and do not include duties



This insulated Type F female to female feed thru bulkhead coupler provides the ability to pass a coaxial connection through a panel or bulkhead utilizing a standard .340" single D mounting hole with the additional feature of providing a non conductive mounting surface to reduce ground loop problems. A common use for this device is to create a connection point on either side of an obstruction.

Features
  • Complete with nut and washer mounting hardware
  • Non conductive mounting shoulder washers provide insulation from panel
  • Provides 75 Ohm signal feed-thru for two Type F male interface devices
  • Single D bulkhead design for panel mounting
  • Nickel plated body for enhanced corrosion resistance

Application
  • Coax retrofit applications
  • Coaxial Extension
  • Coaxial interface conversion
  • OEM coax applications


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
