Coaxial Bulk Cable RG142B/U, 100 foot Coil

SKU RG142B-100
Available to Ship 2
Quantity Price
1 - 9 $515.00
10 - 24 $494.40
25 - 99 $473.80
100 + Call Us
Price $515.00

All Prices are in US Dollars and do not include duties

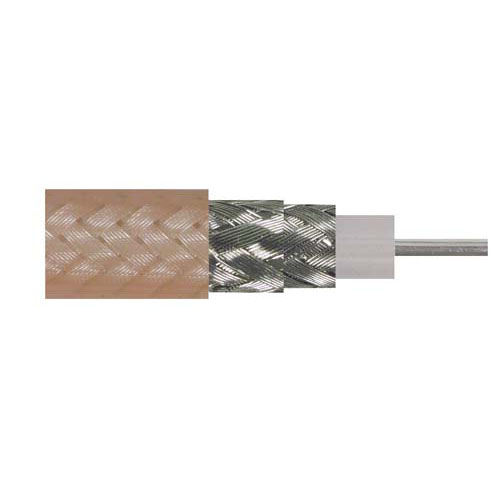

This bulk RG142B/U cable can be used in applications where cable assemblies must be built in the field. The FEP outer jacket helps this cable achieve a 200 degree C operating temperature. And the 18 AWG solid center conductor results in a cable with low insertion loss characteristics. Spool may contain more than one piece.

Features
  • High temperature 50 Ohm data signal transmission
  • FEP outer jacket results in a 200 degree C operating temperature
  • 18 AWG solid center conductor produces low insertion loss
  • Double outer conductor construction enhances shielding characteristics

Application
  • Ethernet
  • Data
  • Premise wiring
  • R&D


Product Resources

Key Specifications

Key Specifications

Flex Type
Flexible
Impedance
50 Ohm
Dielectric Type
PTFE
Jacket Diameter
0.195 in
Jacket Material
FEP
No. of Shields
2
Frequency, Max
8 GHz
Max Operating Temperature
200 deg C
Inner Conductor, Number of Strands
1
Minimum Bend Radius, One Time
0.98 in
Coax Type
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
