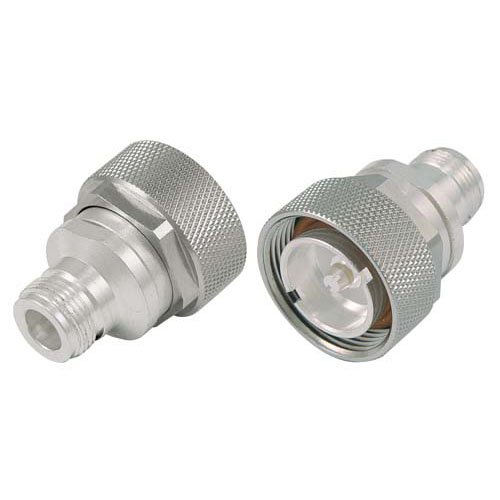

Coaxial Adapter, N-Female / 7/16 DIN Male

  • Picture of Coaxial Adapter, N-Female / 7/16 DIN Male
Picture of Coaxial Adapter, N-Female / 7/16 DIN Male
SKU AXA-NFDM
Available to Ship Call us

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Replaced By:


This N-Female to 7/16 DIN Male coaxial adapter provides the ability to connect between a N-Male and 7/16 DIN Female interface. The silver plated body helps ensure durability and long life in the field.

Features
  • Allows interconnection of devices with N-Male and 7/16 DIN Female interfaces
  • Adapters utilize machined components for durability and long life
  • Handy device to have on hand to solve your interconnection problems
  • Silver plated adapter body

Application
  • Coax retrofit applications
  • Coaxial extension
  • Coaxial interface conversion
  • OEM coax applications


Product Resources

Key Specifications

Key Specifications

Connector Series 1
7/16 DIN
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
N
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Silver
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Silver

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
