Coaxial 50 Ohm Right Angle Adapter, Mini-UHF Female / Male

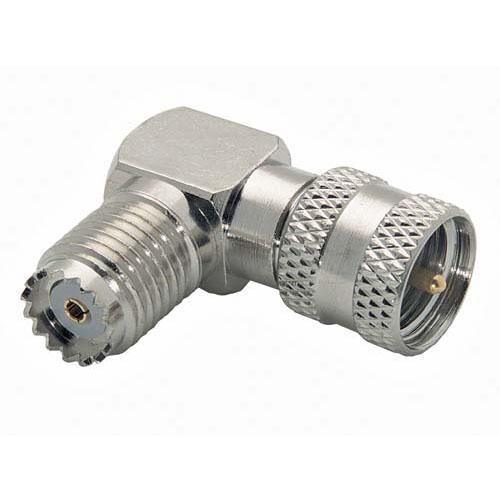

  • Picture of Coaxial 50 Ohm Right Angle Adapter, Mini-UHF Female / Male
  • Picture of Coaxial 50 Ohm Right Angle Adapter, Mini-UHF Female / Male
  • Picture of Coaxial 50 Ohm Right Angle Adapter, Mini-UHF Female / Male
Picture of Coaxial 50 Ohm Right Angle Adapter, Mini-UHF Female / Male
SKU BA470
Available to Ship 26
Quantity Price
1 - 24 $23.59
25 - 49 $22.41
50 - 99 $21.23
100 + Call Us
Price $23.59

All Prices are in US Dollars and do not include duties



This right angle Mini UHF male to female adapter features a compact profile ideal for limited space applications. This adapter can also be used to convert an in line Mini UHF male cable connector to a 90 degree configuration by attaching to cable end.

Features
  • Handy device to have on hand to solve your interconnection problems
  • Allows interconnection of devices with Mini UHF interfaces
  • Right angle configuration useful in tight fit situations

Application
  • Coaxial interface conversion
  • OEM coax applications
  • Coax retrofit applications
  • Coaxial Extension


Product Resources

Key Specifications

Key Specifications

Connector Series 1
Mini UHF
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
Mini UHF
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
2.5 GHz
Adapter Body Style
Right Angle
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
