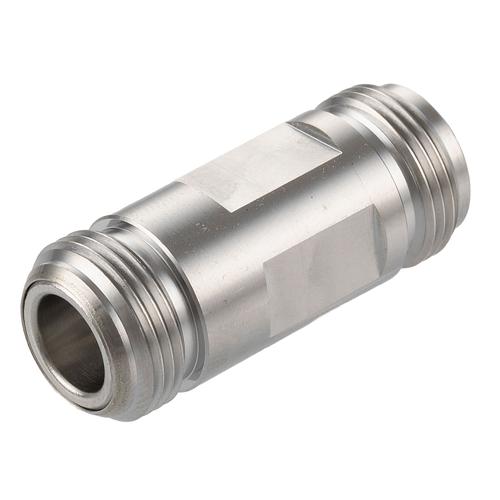

Coax Adapter, Type-N Female / Female, Low PIM

  • Picture of Coax Adapter, Type-N Female / Female, Low PIM
  • Picture of Coax Adapter, Type-N Female / Female, Low PIM
  • Picture of Coax Adapter, Type-N Female / Female, Low PIM
  • Picture of Coax Adapter, Type-N Female / Female, Low PIM
  • Picture of Coax Adapter, Type-N Female / Female, Low PIM
Picture of Coax Adapter, Type-N Female / Female, Low PIM
SKU AXA-PNFNF
Available to Ship 5
Quantity Price
1 - 24 $109.99
25 - 49 $98.99
50 - 99 $87.99
100 + Call Us
Price $109.99

All Prices are in US Dollars and do not include duties



The AXA-PNFNF adapter is ideal for used with Distributed Antenna Systems (DAS) do to its excellent Passive InterModulation (PIM) performance of -160dBc. This adapter features a Type-N Female to Type-N Female interface.

For additional information and complete specifications, see the 2D Drawing in Downloads section.


Features
  • Excellent Passive InterModulation performance of -160dBc
  • Plated brass body ideal for outdoor use

Application
  • Distributed antenna systems (DAS)
  • IEEE 802.11b and 802.11g Wireless LAN applications
  • Low PIM coax cable assemblies
  • Low-loss coax
  • Coaxial extension

Key Specifications

Key Specifications

Connector Series 1
N
Connector Gender 1
Female
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
N
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
3 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Tri-Metal
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
