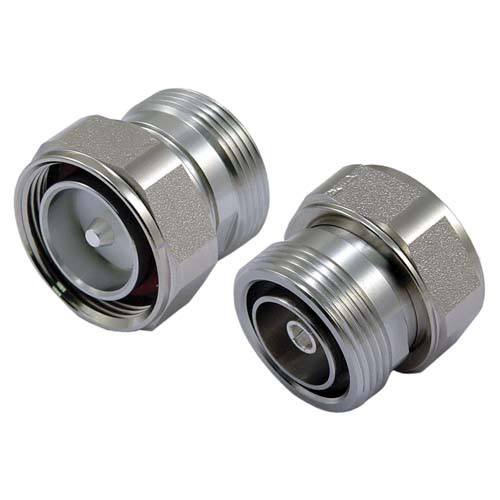

Coax Adapter, 7/16 DIN Male / Female, Low PIM

SKU AXA-PDMDF
QTY available 284
Quantity Price
1 - 9 $96.99
10 - 24 $89.23
25 - 99 $81.47
100 + Call Us
Price $96.99

All Prices are in US Dollars and do not include duties



The AXA-PDMDF adapter is ideal for used with Distributed Antenna Systems (DAS) do to its excellent Passive InterModulation (PIM) performance of -160dBc. This adapter features a 7/16 DIN Male to 7/16 DIN Female interface.

For additional information and complete specifications, see the 2D Drawing in Downloads section.


Features
  • Excellent Passive InterModulation performance of -160dBc
  • Plated brass body ideal for outdoor use

Application
  • Coaxial extension
  • Distributed antenna systems (DAS)
  • IEEE 802.11b and 802.11g Wireless LAN applications
  • Low PIM coax cable assemblies
  • Low-loss coax


Product Resources

Key Specifications

Key Specifications

Connector Series 1
7/16 DIN
Connector Gender 1
Male
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
7/16 DIN
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
3 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Tri-Metal
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Gold
