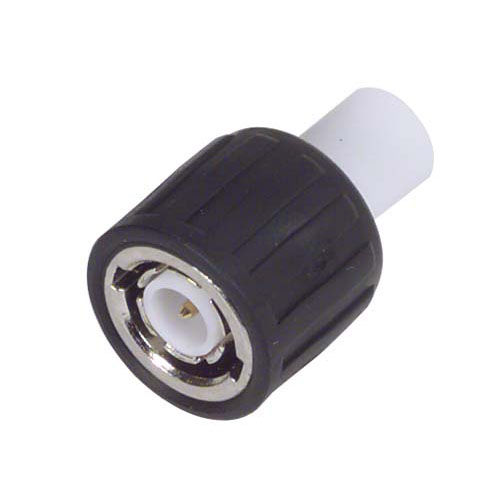

BNC Terminator, Male, use with RG62 (93 Ohms) Nylon Cap

SKU BIF9M
Available to Ship 93
Quantity Price
1 - 24 $1.13
25 - 49 $1.02
50 - 99 $0.90
100 + Call Us
Price $1.13

All Prices are in US Dollars and do not include duties



This BNC male terminator features an insulated coupling nut and a white color coded cap indicating a 93 Ohm resistance. A ¼ watt @70 degrees metal film type resistor with a +/- 1% tolerance is utilized.

Features
  • Color coded white to assure proper attachment
  • 1/4 watt terminating resistor
  • Insulated to avoid grounding problems
  • Line termination of a 93 Ohm transmission line

Application
  • 10Base-3
  • Cheapernet
  • Ethernet
  • Thinnet


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
93 Ohm
Maximum Frequency
500 MHz
Maximum VSWR
2:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Connector Series
BNC
Connector Gender
Male
Package Family
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
