BNC Terminator, Male, use with RG62 (93 Ohms)

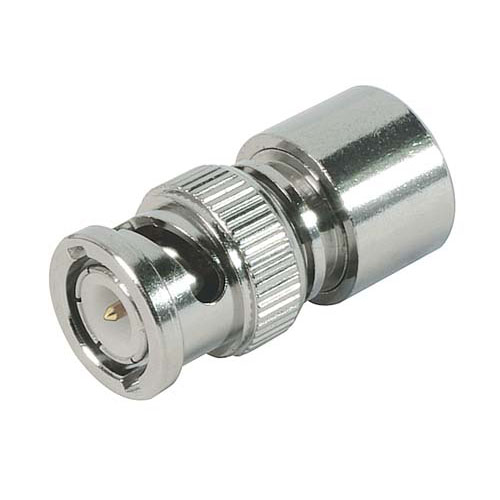

  • Picture of BNC Terminator, Male, use with RG62 (93 Ohms)
Picture of BNC Terminator, Male, use with RG62 (93 Ohms)
SKU BTB9MD
Available to Ship 39
Quantity Price
1 - 24 $11.19
25 - 49 $10.63
50 - 99 $10.07
100 + Call Us
Price $11.19

All Prices are in US Dollars and do not include duties



This BNC male terminator utilizes a ¼ watt carbon film type resistor and a 93 Ohm impedance value. Connector body is marked with 93 Ohm value to assure proper installation.

Features
  • 1/4 watt terminating resistor
  • Nickel plated body provides optimum resistance to corrosion
  • Termination of 93 Ohm coaxial lines
  • Gold plated contacts minimize attenuation

Application
  • Test & measurement
  • Coaxial termination
  • Data center
  • Laboratory


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
93 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
2:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Connector Series
BNC
Connector Gender
Male
Package Family
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
