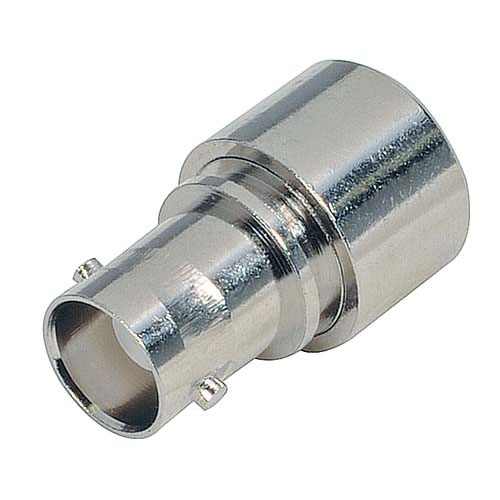

BNC Terminator, Female, use with RG59 (75 Ohms)

  • Picture of BNC Terminator, Female, use with RG59 (75 Ohms)
  • Picture of BNC Terminator, Female, use with RG59 (75 Ohms)
Picture of BNC Terminator, Female, use with RG59 (75 Ohms)
SKU BTB7FD
Available to Ship 187
Quantity Price
1 - 24 $9.29
25 - 49 $8.36
50 - 99 $7.43
100 + Call Us
Price $9.29

All Prices are in US Dollars and do not include duties



This BNC female terminator utilizes a ¼ watt carbon film type resistor and a 75 Ohm impedance value. Connector body is marked with 75 Ohm value to assure proper installation.

Features
  • Gold plated contacts minimize attenuation
  • Termination of 75 Ohm coaxial lines
  • 1/4 watt terminating resistor
  • Nickel plated body provides optimum resistance to corrosion

Application
  • Coaxial termination
  • Laboratory
  • Data center
  • Test & measurement


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
75 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
1.5:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Body Material
Brass
Connector Series
BNC
Connector Gender
Female
Package Family
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
