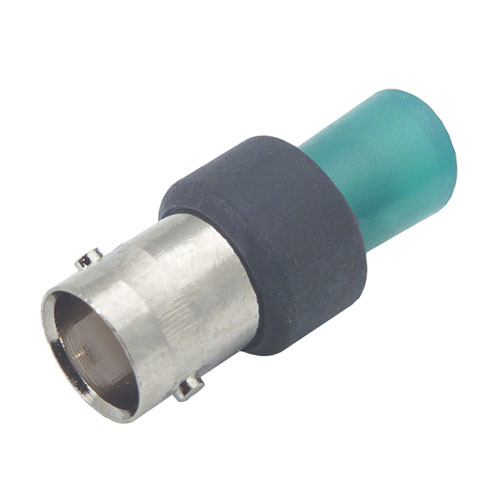

BNC Terminator, Female, use with RG58 (50 Ohms) Nylon Cap

SKU BIF5F
Available to Ship 68
Quantity Price
1 - 24 $8.99
25 - 49 $8.09
50 - 99 $7.19
100 + Call Us
Price $8.99

All Prices are in US Dollars and do not include duties



This BNC female terminator features an insulated body and a green color coded cap indicating a 50 Ohm resistance value for use with 50 Ohm coaxial cable such as RG58 . A ¼ watt @70 degrees metal film type resistor with a +/- 1% tolerance is utilized.

Features
  • BNC female interface for male terminated assemblies
  • Color coded green to assure proper attachment
  • Line termination of a 50 Ohm transmission line
  • 1/4 watt terminating resistor

Application
  • Cheapernet
  • 10Base-2
  • Ethernet
  • Thinnet


Product Resources

Key Specifications

Key Specifications

Termination Type
RF Load
Impedance
50 Ohm
Maximum Frequency
1 GHz
Maximum VSWR
1.5:1
Minimum Frequency
DC
Maximum Power
0.25 Watt
Connector Series
BNC
Connector Gender
Female
Package Family
Coax

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
