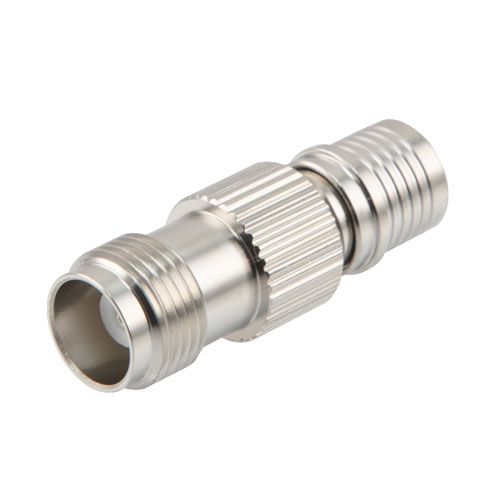

Coaxial Adapter, TNC Female / QMA Male, Low PIM

SKU LCAD30042
QTY available 70
Quantity Price
1 + $19.19
Price $19.19

All Prices are in US Dollars and do not include duties



These L-com RF Coaxial Adapters are used to interface between TNC to QMA coaxial connection interfaces. The LCAD30042 is a straight adapter with a Female to Male configuration. This coaxial adapter, TNC Female / QMA Male is made from Brass and has a Tri-Metal finish.

This between series TNC Female to QMA Male LCAD30042 adapter is rated to 6 GHz with a low VSWR of 1.3:1. The design on this connector allows for low PIM applications with PIM ratings lower than -155 dBc.

L-com’s RF Coaxial and Triaxial adapters are in stock and ship same day.

Features
  • PIM levels lower than -155
  • Maximum VSWR of 1.3:1
  • Rated to 6 GHz
  • Silver Plated Beryllium Copper Contact

Application
  • Low PIM
  • Adapter for Between Series Connections
  • Lab and General Purpose Test


Documents and Resources

Key Specifications

Key Specifications

Connector Series 1
TNC
Connector Gender 1
Female
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
QMA
Connector Gender 2
Male
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Tri-Metal
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Tri-Metal
