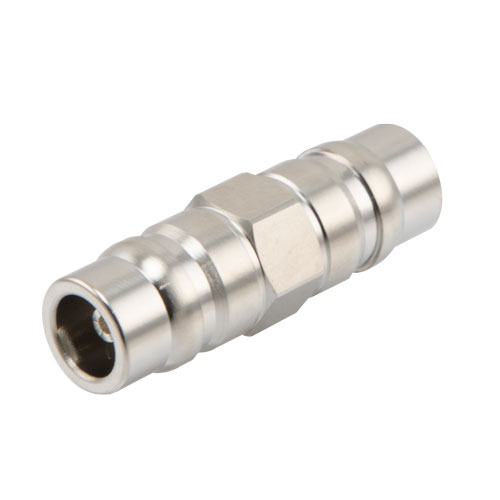

Coaxial Adapter, QN Female / QN Female, Low PIM

SKU LCAD30041
QTY available 74
Quantity Price
1 - 24 $20.39
25 - 49 $19.37
50 - 99 $18.35
100 + Call Us
Price $20.39

All Prices are in US Dollars and do not include duties



These L-com RF Coaxial Adapters are used to interface between QN to QN coaxial connection interfaces. The LCAD30041 is a straight adapter with a Female to Female configuration. This coaxial adapter, QN Female / QN Female is made from Brass and has a Tri-Metal finish.

The in-series QN Female to QN Female LCAD30041 adapter is rated to 6 GHz with a low VSWR of 1.2:1. The design on this connector allows for low PIM applications with PIM ratings lower than -160 dBc.

L-com’s RF Coaxial and Triaxial adapters are in stock and ship same day.

Features
  • PIM levels lower than -160
  • Maximum VSWR of 1.2:1
  • Rated to 6 GHz
  • Silver Plated Beryllium Copper Contact

Application
  • Low PIM
  • Adapter for Between Series Connections
  • Lab and General Purpose Test


Documents and Resources

Key Specifications

Key Specifications

Connector Series 1
QN
Connector Gender 1
Female
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
QN
Connector Gender 2
Female
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Frequency, Min
DC
Frequency, Max
6 GHz
Adapter Body Style
Straight
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Tri-Metal
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Tri-Metal
