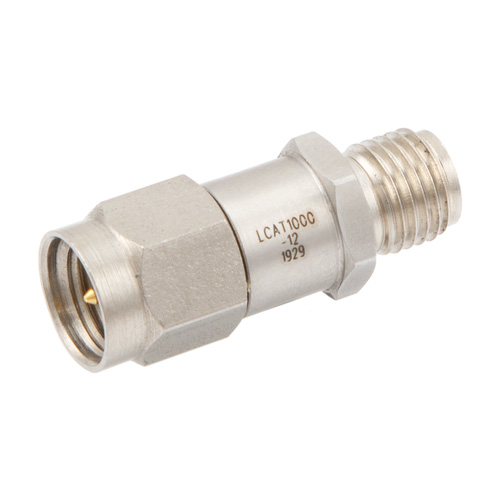

2W/12dB RF Fixed Attenuator, SMA Male to SMA Female Passivated Stainless Steel Body Up to 6 GHz

SKU LCAT1000-12
QTY available Call us
Quantity Price
1 + $16.58
Price $16.58

All Prices are in US Dollars and do not include duties



LCAT1000 is a RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other. The part is available in stock with same day shipping.

Features
  • Attenuation 12±0.5 dB
  • DC to 6 GHz Frequency Range
  • SMA connector interface
  • Max Power 2 Watt (CW)
  • VSWR < 1.25:1

Application
  • Production systems
  • Prototyping and characterization
  • RF test systems
  • Instrumentation
  • Precision measurements
