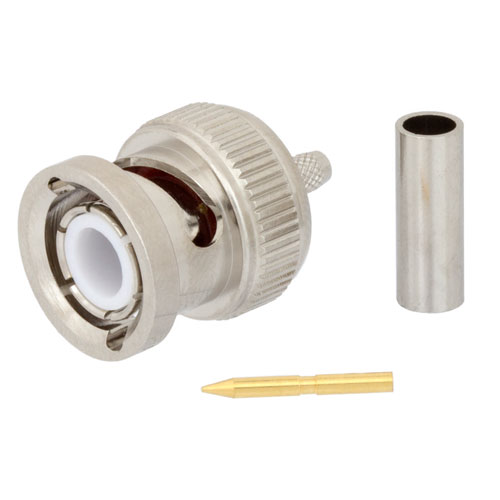

LCCN45961 BNC male coaxial connector has a series type of BNC male and interface type of RG316-DS, RG188-DS with a 50 Ohm impedance. L-com male connector uses shield/contact crimp/solder as an attachment method. Our male coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz. The BNC connector is available in a 1.11-inch length, 0.571-inch width, and 0.571-inch height.
The L-com male coaxial connector has a Teflon dielectric type. The L-com BNC coaxial connector has a brass body with nickel plating. Our LCCN45961 connector uses brass contact and a gold plating material.
This L-com male connector will ship the same day as purchased. Our BNC male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build BNC custom connector cable assemblies that will ship the same day as well.
The BNC male connector with 50 Ohm impedance has a weight of 0.027 lbs. The male coaxial connector can operate at temperatures ranging from -65 to 165 degrees C. We currently have a variety of antenna, audio/video, Ethernet, fiber optic, and USB connectors in our portfolio that are ready to ship today. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF connector that meets your requirements.
Features
- Max Operating Frequency 3 GHz
- Gold Plated Brass Contact
- Excellent VSWR of 1.25:1
- 50 µin minimum contact plating
Application
- General Purpose Test
- Custom Cable Assemblies
