Coaxial Adapter, SMB Tee Jack / Plug / Jack

SKU LCAD30016
QTY available 195
Quantity Price
1 - 24 $16.99
25 - 49 $16.31
50 - 99 $15.80
100 + Call Us
Price $16.99

All Prices are in US Dollars and do not include duties

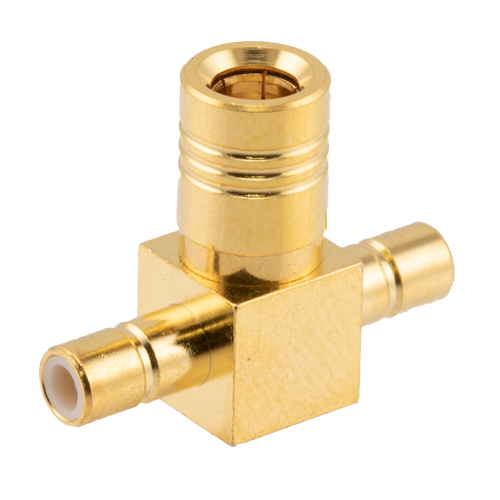

These L-com RF Coaxial Adapters are used to interface between SMB to SMB with coaxial connections. The LCAD30016 is a tee adapter with a jack to plug configuration. This Coaxial Adapter, SMB Tee Jack / Plug / Jack is made from brass and has a gold finish.

The SMB interface is smaller than an SMA and uses a snap on connection. An important difference to note is that the SMB Jack (female) interface design has a Male center contact and the SMB Plug (Male) design uses a female socket for the center pin. SMB connectors generally have a maximum operating frequency of 4 GHZ and are available in 50 Ohm and 75 Ohm impedances.

L-com's RF Coaxial and Triaxial adapters are in stock and ship same day.

Features
  • Provides In-Series SMB Connections
  • Operates to 100 MHz
  • Max VSWR of 2.1:1
  • Gold Plated Center Contacts

Application
  • Multi Cable In-Series Interconnect
  • Synchronization and Trigger Signal Interconnect
  • General Purpose Lab Use


Documents and Resources

Key Specifications

Key Specifications

Connector Series 1
SMB
Connector Gender 1
Jack
Connector Polarity 1
Standard
Connector Impedance 1
50 Ohm
Connector Series 2
SMB
Connector Gender 2
Plug
Connector Polarity 2
Standard
Connector Impedance 2
50 Ohm
Connector Series 3
SMB
Connector Gender 3
Plug
Connector Polarity 3
Standard
Connector Impedance 3
50 Ohm
Frequency, Min
DC
Frequency, Max
100 MHz
Adapter Body Style
Tee
Connector Mount Method 1
None
Connector Body Material 1
Brass
Connector Body Plating 1
Gold
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Gold
Connector Mount Method 3
None
Connector Body Material 3
Brass
Connector Body Plating 3
Gold
