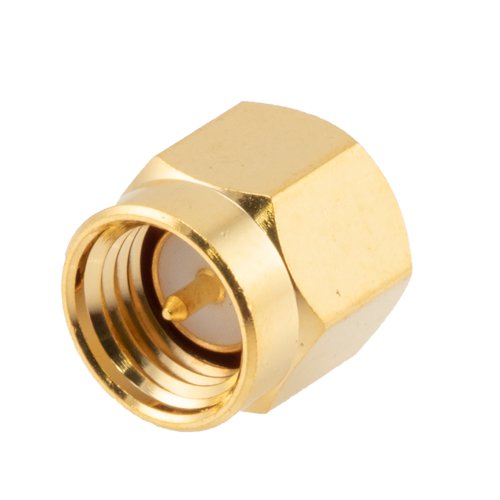

Coaxial Adapter, SMA Male / UMCX Jack

SKU LCAD30005
QTY available 138
Quantity Price
1 + $4.40
Price $4.40

All Prices are in US Dollars and do not include duties



These L-com RF Coaxial Adapters are used to interface between SMA to UMCX with coaxial connections. The LCAD30005 is a straight adapter with a male to jack configuration. This Coaxial Adapter, SMA Male / UMCX Jack is made from tri-metal and has a gold finish.

An SMA interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. SMA's generally work up to 18GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection.

A UMCX adapter's interface is compatible with the popular u.fl design from Hirose. The UMCX has a simple snap on connection and its small size is popular in applications that require a small foot print. Often used on printed circuit boards and with micro coax the UMCX (u.fl) interface is a widely used miniature coaxial connector series.

L-com's RF Coaxial and Triaxial adapters are in stock and ship same day.

Features
  • Provides Between Series SMA to UMCX Connections
  • Operates to 6 GHz
  • Max VSWR of 1.3:1
  • Gold Plated Center Contacts

Application
  • System Interconnect
  • PCB Board to Cable Connections
  • Test and Measurement Applications
