Coaxial Adapter, 78 Ohm BNC Twinax Jack / Jack Bulkhead

SKU LCAD30020
QTY available Call us
Quantity Price
1 - 24 $26.19
25 - 49 $25.14
50 - 99 $24.36
100 + Call Us
Price $26.19

All Prices are in US Dollars and do not include duties

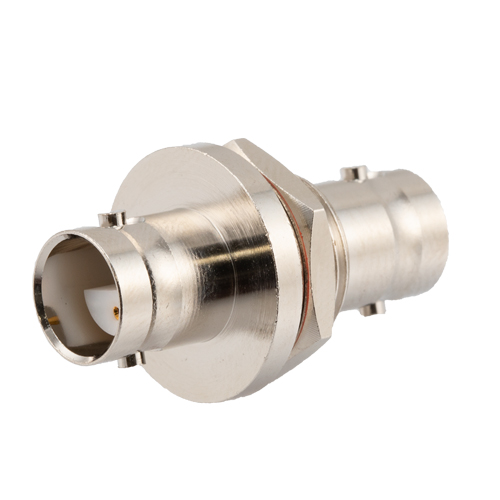

These L-com RF Coaxial Adapters are used to interface between BNC Twinax to BNC Twinax with coaxial connections. The LCAD30020 is a straight bulkhead adapter with a jack to jack configuration. This Coaxial Adapter, 78 Ohm BNC Twinax Jack / Jack Bulkhead is made from brass and has a nickel finish.

The Twin-Ax BNC has twn contacts inside the connector housing. The coupling mechanism is a boyonet design, the same as a standard BNC. Twin-ax BNC connections are commanly used with Twin-ax cable used in differential pair applications where separate conductors are used to carry the signal of interest. BNC Twinax adapters are ofen required to adapt between connector genders.

L-com's RF Coaxial and Triaxial adapters are in stock and ship same day.

Features
  • Provides In-Series BNC to BNC Connections
  • Operates to 500 MHz
  • Gold Plated Center Contacts
  • Bulkhead Mount

Application
  • Differential Signal Cable Interconnect
  • Cable to Cable Connection
  • General Purpose Lab Use


Documents and Resources

Key Specifications

Key Specifications

Connector Series 1
BNC Twinax
Connector Gender 1
Jack
Connector Polarity 1
Standard
Connector Impedance 1
78 Ohm
Connector Series 2
BNC Twinax
Connector Gender 2
Jack
Connector Polarity 2
Standard
Connector Impedance 2
78 Ohm
Frequency, Min
DC
Frequency, Max
500 MHz
Adapter Body Style
Straight
Connector Mount Method 1
Bulkhead
Connector Body Material 1
Brass
Connector Body Plating 1
Nickel
Connector Mount Method 2
None
Connector Body Material 2
Brass
Connector Body Plating 2
Nickel
