902 to 928 MHz Rubber Duck Antenna 2.5dBi RP-SMA Male Tilt Swivel

SKU LCANRBD1059
QTY available 95
Quantity Price
1 - 24 $13.79
25 - 49 $13.10
50 - 99 $12.41
100 + Call Us
Price $13.79

All Prices are in US Dollars and do not include duties

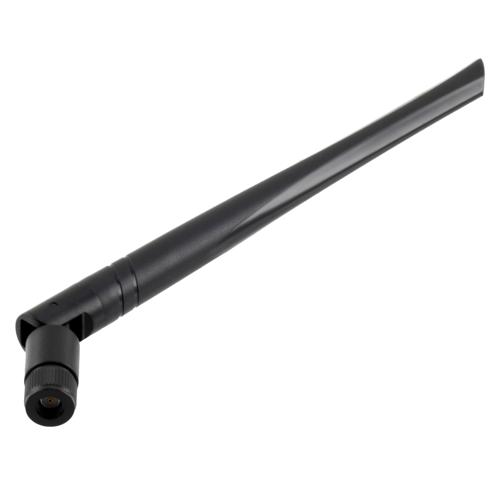

The LCANRBD1059 is a high-quality single-band rubber duck antenna with 2.5 dBi nominal gain and has a frequency range of 902 MHz to 928 MHz. L-com’s omnidirectional tilt/swivel rubber duck antenna is 7.72 inches tall and 0.5 inches wide.

The LCANRBD1059 rubber duck antenna from L-com features a Reverse Polarity SMA Male connector with an input VSWR (voltage standing wave ratio) of 2:1.

L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C. This single-band rubber duck antenna is offered with expert technical support, PDF datasheets, and CAD drawings with dimensions and specifications.


Features
  • 902 MHz to 928 MHz
  • 2.5 dBi Gain
  • Reverse Polarity SMA Male connector
  • Tilt/Swivel
  • VSWR 2:1
  • Linear polarization

Application
  • LPWAN
  • ISM
  • LoRaWAN
  • Sigfox
  • Weightless-P
  • WiFi HaLow
  • Fixed and Mobile Devices


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Linear
Minimum Frequency
902 MHz
Maximum Frequency
928 MHz
Connector 1 Polarity
Reverse Polarity
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1
