  2. 420 to 440 MHz Small Rubber Duck Antenna SMA Male Mount

420 to 440 MHz Small Rubber Duck Antenna SMA Male Mount

SKU LCANRBD1065
QTY available 125
Quantity Price
1 - 24 $10.79
25 - 49 $10.25
50 - 99 $9.71
100 + Call Us
Price $10.79

All Prices are in US Dollars and do not include duties

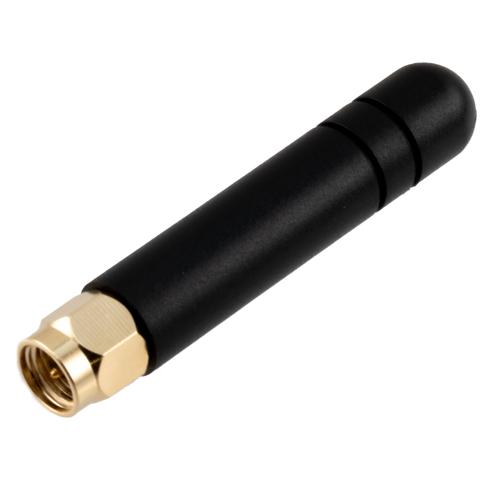

The LCANRBD1065 is a high-quality single-band rubber duck antenna witha frequency range of 420 MHz to 440 MHz. L-com’s omnidirectional rubber duck antenna is 6 inches tall and 0.5 inches wide.

The LCANRBD1065 rubber duck antenna from L-com features a SMA Male connector with an input VSWR (voltage standing wave ratio) of 2:1.

L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C. This single-band rubber duck antenna is offered with expert technical support, PDF datasheets, and CAD drawings with dimensions and specifications.


Features
  • 420 MHz to 440 MHz
  • SMA Male connector
  • VSWR 2:1
  • Linear polarization

Application
  • LPWAN
  • ISM
  • Weightless-P
  • Fixed and Mobile Devices


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Linear
Minimum Frequency
420 MHz
Maximum Frequency
440 MHz
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1
