  2. 3300-4200 MHz, 2-Foot, 24 dBi, Parabolic Dish Antenna, Vertical/Horizontal Polarized, 2 x N-Type Female Connectors

3300-4200 MHz, 2-Foot, 24 dBi, Parabolic Dish Antenna, Vertical/Horizontal Polarized, 2 x N-Type Female Connectors

SKU HG3342DP-24D
QTY available 10
Quantity Price
1 - 9 $381.99
10 - 24 $374.35
25 - 99 $366.71
100 + Call Us
Price $381.99

All Prices are in US Dollars and do not include duties

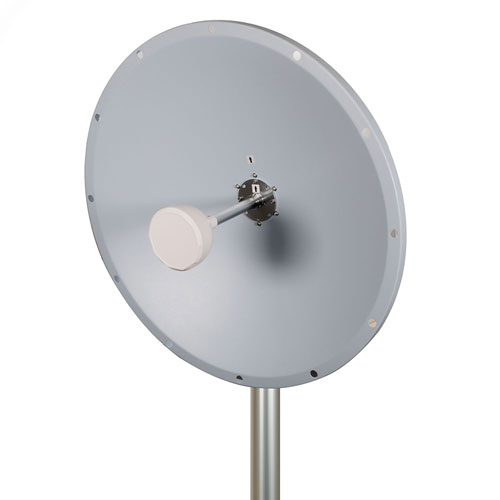

L-com’s HG3342DP-24D is a 3300 – 4200 MHz directional dish antenna with a 24 dBi nominal gain. The 2-foot parabolic dish antenna has a front-to-back ratio of 30 dB with vertical/horizontal polarization. Our high-quality single-band dual polarized antenna has 2-ports and is DC grounded to protect against lightning. This N-type connectorized antenna supports the latest C bands and CBRS bands for 5G.

The HG3342DP-24D parabolic dish antenna comes with an impedance of 50 Ohms and a max input power of 100 Watts. Our 2-foot directional dish antenna is designed to withstand temperatures between -40 to 60 deg C. The HG3342DP-24D from L-com has a minimum mounting pole diameter of 1.18 inches and a maximum mounting pole diameter of 2.36 inches.

Our 3300 – 4200 MHz single-band directional dish antenna has a gain of 24 dBi and an N-type connector. L-com’s HG3342DP-24D dual polarized antenna with 100 Watts max input power has 9 degrees of horizontal and 9 degrees of vertical HPBW. This vertical/horizontal polarized antenna has a gray-colored radome made of aluminum alloy.

L-com has the largest in-stock selection of N-type female connectorized 3300 – 4200 MHz parabolic dish antenna with same-day shipment. Make your online purchase right now to take advantage of our same-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal vertical/horizontal polarized antenna for your requirements.


Features
  • 2-Foot parabolic antenna
  • 3300 MHz to 4200 MHz, 24 dBi gain
  • 915mm LMR200 pigtail
  • 2 x N-type female connector
  • All aluminum dish material
  • Dual polarization (V/H)
  • VSWR < 2:1
  • 100 W max input power per port

Application
  • Long distance backhaul
  • Point to point data links (PtP)
  • Point to multi-point data links (PtMP)
  • Standard C-band and extended C-band
  • 5G bands - n77, n78
  • MIMO capability
  • CBRS and extended CBRS
  • 3 GHz WISP and LTE network


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Dish
Polarization
Vertical/Horizontal
Minimum Frequency
3.3 GHz
Maximum Frequency
4.2 GHz
Connector Series
N
Connector Gender
Female
Impedance
50 Ohm
Maximum Input VSWR
2:1
