  2. 31 dBi Active GPS/GLONASS Magnet Mount Antenna RHCP 1575/1602 MHz, RG174 SMA Male IPX6

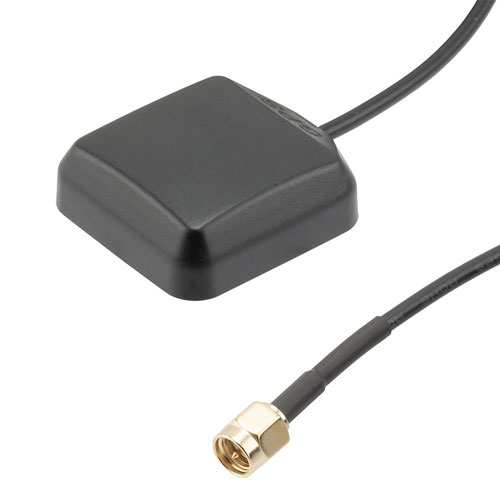

31 dBi Active GPS/GLONASS Magnet Mount Antenna RHCP 1575/1602 MHz, RG174 SMA Male IPX6

SKU LCANGPS1010
Available to Ship 104
Quantity Price
1 - 24 $42.59
25 - 49 $40.46
50 - 99 $38.33
100 + Call Us
Price $42.59

All Prices are in US Dollars and do not include duties



The L-com Active GNSS Antenna LCANGPS1010 is Right Hand Circular Polarized with an integrated Neodymium Rare Earth Magnet for a secure mount. The LCANGPS1010 is an active GPS L1 and GLONASS G1 band antenna with 31 dBi Gain. These Magnet Mount active GNSS antenna units are ideally suited for use on vehicles where low profile, low drag, non-penetrating style antennas are needed.

Our GNSS antenna specialists are ready and available to answer any questions you may have on the LCANGPS1010. This high quality SMA male antenna meets GPS L1 and GLONASS G1 requirements by operating in the 1574 MHz to 1607 MHz frequency range.

The LCANGPS1010 GNSS antenna series from L-com are designed for mobile, vehicle, or fleet servies to receive GNSS signals from satellite constellations to triangulate geolocations for navigation, tracking, and surveying.


Features
  • SMA Male
  • Right Hand Circular Polarizied
  • 28 dB LNA w/ low 1.5 dB Noise Figure
  • Neodymium Rare-Earth Magnet
  • IPX6 Rated

Application
  • GPS L1/GLONASS G1
  • High Accuracy Global Positioning
  • Precision Agriculture, Mining and Construction
  • Law Enforcement and Public Safety
  • Vehicle Fleet Management


Product Resources

Key Specifications

Key Specifications

Antenna Type
GPS Active
Polarization
RHCP
Minimum Frequency
1.57 GHz
Maximum Frequency
1.61 GHz
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
1.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
