2.4 to 2.5 GHz Rubber Duck Antenna 3 dBi SMA Male Tilt Swivel

SKU LCANRBD1067
QTY available 82
Quantity Price
1 - 24 $14.39
25 - 49 $13.67
50 - 99 $12.95
100 + Call Us
Price $14.39

All Prices are in US Dollars and do not include duties

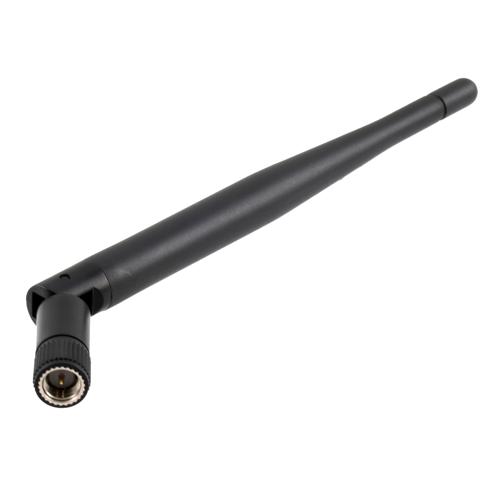

The LCANRBD1067 is a high-quality single-band rubber duck antenna with 3 dBi nominal gain and has a frequency range of 2400 MHz to 2500 MHz. L-com’s omnidirectional tilt/swivel blade rubber duck antenna is 5.46 inches tall and 0.39 inches wide.

The LCANRBD1067 rubber duck antenna from L-com features a SMA Male connector with an input VSWR (voltage standing wave ratio) of 2:1.

L-com’s linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C. This single-band rubber duck antenna is offered with expert technical support, PDF datasheets, and CAD drawings with dimensions and specifications.


Features
  • 2400 MHz to 2500 MHz
  • 3 dBi Gain
  • SMA Male connector
  • Tilt/Swivel
  • VSWR 2:1
  • Linear polarization

Application
  • 2.4 GHz ISM
  • Bluetooth
  • ZigBee
  • IEEE 802.11b/g
  • IEEE 802.15.4
  • Fixed and Mobile Devices


Documents and Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Linear
Minimum Frequency
2.4 GHz
Maximum Frequency
2.5 GHz
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2:1
