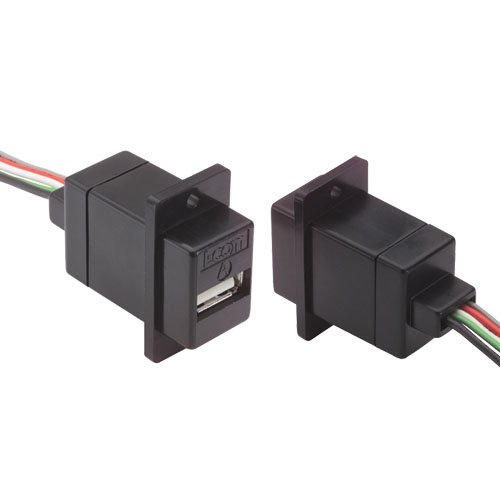

USB Type A Jack, 10" Leads Black


JK PNL MNT USB A, 10
Roll over image to zoom in
JK PNL MNT USB A, 10 JK PNL MNT USB A, 10
L-com Item # ECJ504B-UA

List Price$5.80
Your Price 1-9$5.80
10-24$5.68
25-99$5.45
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector end for this adapter?

Another unique USB panel mount option allows the user the flexibility to configure their own assembly. It features a bulkhead Type A or B Jack with 10 inches of un-terminated lead wires. The user can cut the wires to the desired length and hard wire or terminate them with their connector of choice. Wires are 20 AWG (2 power) and 24 AWG (2 signal) with an additional 24 AWG wire connected to the connector shell. This assembly uses the popular ECF style housing that is usable in virtually any panel thickness. L-com can custom terminate these wire leads with modest minimum requirements. Recommended 4-40 mounting screws must be purchased separately (P/N ECF440).

L-com Item #ECJ504B-UA
ManufacturerL-com
NSN # (More)5935015264729
UPC # (More)822335022805
RoHS StatusRoHS Compliant RoHS Compliant(More)
ColorBLACK
Features:
  • Allows USB cables to be passed through panels or enclosures
  • Screw mount for secure installations
  • 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
  • Wire leads are 20 AWG (2 power) and 24 AWG (2 signal) with an additional 24 AWG wire connected to the connector shell
  • Available with Type A or B connectors with black or ivory housings
Applications:
  • PC Peripheral Interconnects
  • Test and Measurement
  • Data Acquisition
