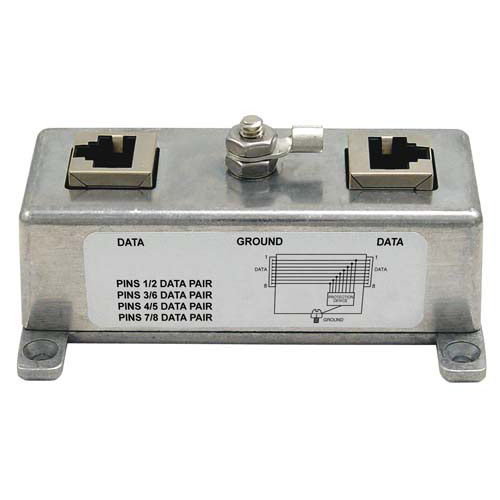

Indoor 10/100/1000 Base-T Shielded CAT6 Lightning Protector - RJ45 Jacks


LP, INDOOR CAT6 SHIELED RJ45
Roll over image to zoom in
LP, INDOOR CAT6 SHIELED RJ45 LP, INDOOR CAT6 SHIELED RJ45 LP, INDOOR CAT6 SHIELED RJ45
L-com Item # HGLN-CAT6

List Price$44.95
Your Price 1-9$44.95
10-24$42.25
25-99$39.56
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity

Hyperlink's HGLN-CAT6 Lightning Protector with improved frequency response is compatible with 10, 100 and 1000 Base -T and Gigabit Ethernet networks. This unit individually protects the 8 wires in standard "CAT5/CAT6" cable. High-speed devices clamp any voltage, positive or negative on the wires. The design uses transmission line layout techniques to maintain a balanced 100 ohm impedance in the signal path of the four pairs for minimal insertion loss and superior high frequency response.

EMI Noise Suppression

The HGLN-CAT6 features shielded RJ45 jacks. This along with the HGLN-CAT6's metal housing helps reduce the effects of EMI interference. Additional features include a ground lug and terminal is provided directly on the lightning protector housing providing superior grounding. For maximum protection from lightning on long cable runs, two HGLN-CAT6 can be used, one at each end of the cable.

The cast aluminum housing includes integral mounting feet for ease of installation.

NOTE: This product is NOT PoE compatible.

For applications requiring higher power rating and 802.3af PoE compatiblity, see HGLN-CAT6J

Not sure which level of protection is required for your application?
View Our Model Comparison Chart.



L-com Item #HGLN-CAT6
ManufacturerL-com
UPC # (More)822335069732
RoHS StatusNot Compliant At This Time (More)
Power Rating (1=Low-Pwr to 5=Hi-Pwr)Power Rating 1 (1=Low-Pwr to 5=Hi-Pwr)
Features:
  • CAT6, CAT5e and CAT5 compatible
  • Shielded RJ-45 jacks and metal housing for EMI noise suppression
  • 10/100/1000 Base-T Gigabit Ethernet protection
  • Industrial grade cast aluminum construction, integral mounting feet
  • NOTE: This product is NOT PoE compatible
Applications:
  • 10/100/1000 Base-T Gigabit Ethernet networks
  • CAT6, CAT5e and CAT5 applications
  • Wireless Access Points & Bridges

Specifications

Electrical Specifications

Ethernet Connectors (2) RJ45 Jack
Data Lines Pair 1: Pins 1 and 2
Pair 2: Pins 3 and 6
Pair 3: Pins 4 and 5
Pair 4: Pins 7 and 8
Clamping Voltage 35 Volts
Continuous Operating Voltage 15 Volts

Mechanical Specifications

Enclosure Material Cast Aluminum
Ground Lug 10 AWG Max.
Operating Temperature

-40 C (-40 F) to +80 C (+176 F)

Weight .28 lbs. (.13 kg)
Dimensions 3.6 x 1.4 x 1.2 (inches)
91.4 x 35.5 x 38.1 (mm)
RoHS Compliant Yes
