900 MHz 5dBi Rubber Duck Antenna - SMA Male Connector

SKU HG905RD-SM
Available to Ship 57
Quantity Price
1 - 24 $43.19
25 - 49 $38.87
50 - 99 $34.55
100 + Call Us
Price $43.19

All Prices are in US Dollars and do not include duties

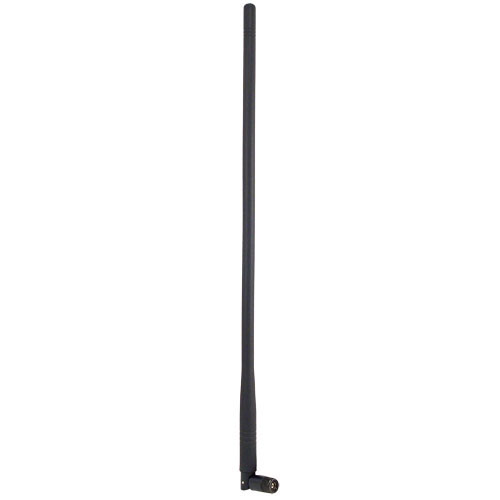

This high performance 900 MHz omnidirectional "rubber-duck" antenna provides broad coverage and 5 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for 900 MHz ISM band applications as well as cellular,and LPWAN applications. Measuring 15.4" long, this flexible antenna features a tilt-and-swivel SMA Male connector, allowing them to be used vertically, at a right angle, or any angle in-between.

For additional information and complete specifications, click on data sheet link below.


Features
  • Better performance than most stock AP antennas
  • Flexible "Rubber Duck" antenna
  • SMA-Male Connector
  • Tilt and swivel design

Application
  • 900 MHz Digital Spread Spectrum Radios
  • 900 MHz ISM Band
  • 900 MHz Telemetry Products
  • Cellular Band Applications
  • LoRA, LPWAN, IoT, and M2M applications


Product Resources

Key Specifications

Key Specifications

Antenna Type
Rubber Duck
Polarization
Vertical
Connector 1 Polarity
Standard
Connector Series
SMA
Connector Gender
Male
Impedance
50 Ohm
Maximum Input VSWR
2.5:1

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
