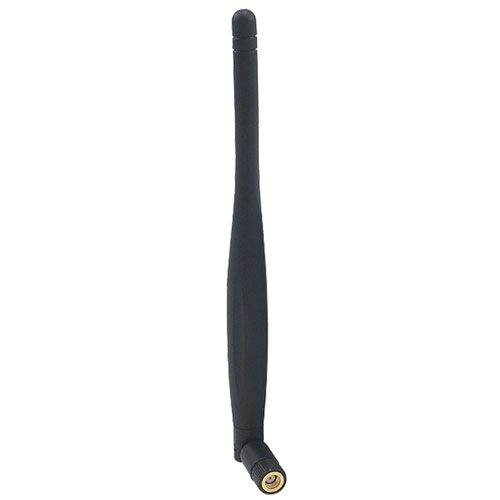

900 MHz 3 dBi Rubber Duck Antenna - RP-SMA Plug Connector

Features

Better performance than most stock AP antennas
Flexible "Rubber Duck" antenna
Tilt and swivel design
Reverse Polarity SMA-Plug (RP-SMA) Connector


Click image(s) to zoom

List Price		$10.99
Your Price	1-9	$10.99
	10-24	$9.89
	25-99	$8.79
	100-249	$7.69
	250-499	$6.59

Quantity

Availability:

In Stock

Available for Same Day Shipping

Need a different connector for this antenna?

This high performance 900 MHz omnidirectional "rubber-duck" antenna provides broad coverage and 3 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for 900MHz ISM band applications as well as cellular applications.

Measuring 8.62" long, this flexible antenna features a tilt-and-swivel Reverse Polarity SMA-Plug (RP-SMA) connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for 900MHz radios that are equipped with RP-SMA connectors such as wireless video transmitters and receivers, 900MHz digital spread spectrum radios and more.

Details

L-com Item #	HG903RD-RSP
Manufacturer	L-com
UPC # (More)	822335076259
RoHS Status	RoHS Compliant (More)

Applications

900MHz ISM Band
Cellular Band Applications
900MHz Digital Spread Spectrum Radios
900MHz Telemetry Products
GSM

Specifications

Electrical Specifications

Frequency	860-960 MHz
Gain	3 dBi
Horizontal Beam Width	360°
Impedance	50 Ohm
Max. Power	50W
VSWR	< 2.0
Lightning Protection	DC Ground

Mechanical Specifications

Weight	1.6 oz. (45 g)
Length	8.62" (219 mm)
Max. Diameter	0.66" (16.7 mm)
Finish	Matte Black
Connector	RP-SMA Plug
Operating Temperature	-40° C to 60° C (-40° F to 140° F)
Polarization	Vertical
Flame Rating	UL 94HB
RoHS Compliant	Yes

Dimensions

RF Antenna Patterns
