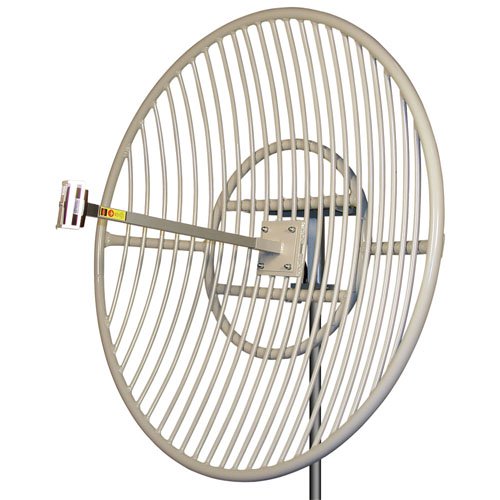

The HyperLink High Performance Parabolic Grid WiFi Antenna provides 30 dBi gain with a 5.3° beam-width for highly directional long range applications. Additional applications include point to point systems, point to multi-point and wireless bridges in the 2.4GHz ISM band as well as IEEE 802.11b/g/n wireless LAN systems. External interference of this antenna is minimized due to the excellent front to back ratio. This antenna comes with a 18" coax lead terminated with an N-Female connector.
Rugged and Weatherproof
This antenna's construction features a welded steel reflector grid for superior strength. The grid surface is UV powder coated for durability and aesthetics, and the open-frame design minimizes wind loading.
Two Piece Design
An HyperLink exclusive, this antenna's 2-piece reflector grid is simple to assemble. The 2-piece design significantly reduces shipping costs compared to similar antennas with one piece reflector grids.
The HG2430G antenna is supplied with a heavy duty 30 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 30°. It can be mounted to a 1.5" (38mm) to 3" (76mm) dia. mast.
Custom connectors can be ordered. Contact Sales for more information.
| L-com Item # | HG2430G | | | |
| Manufacturer | L-com | | | |
| UPC # (More) | 822335069596 | | | |
| RoHS Status | RoHS Compliant  (More) | | | |
|
Need a different connector for this antenna?
|
Features:
Welded galvanized steel construction
UV stable light gray powder coat finish
5.3° beam-width & 18 inch coax lead
Easy to assembly
All weather operation
|
|
Applications:
2.4 GHz ISM Band
IEEE 802.11b/g/n Wireless LAN Applications
WiFi Systems & Long-range Directional Applications
Point to Point Systems & Point to Multi-point Systems
Wireless Bridges, Backhaul Applications & Wireless Video Systems
|
