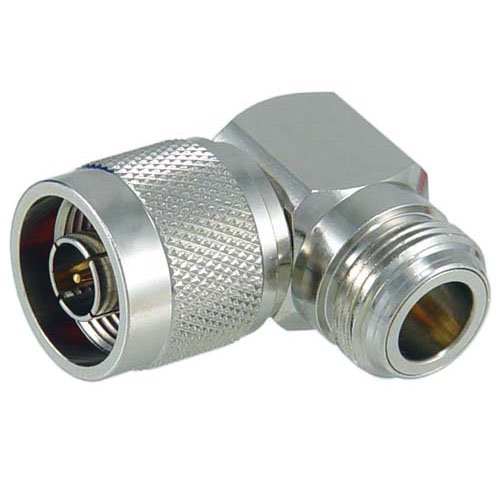

Coaxial 50 Ohm Right Angle Adapter, Compact Type N-Male / Female


ADP,N-Male to N-Female R/Angle
Roll over image to zoom in
ADP,N-Male to N-Female R/Angle ADP,N-Male to N-Female R/Angle ADP,N-Male to N-Female R/Angle
L-com Item # AXA-NMNF90

List Price$7.40
Your Price 1-9$7.40
10-24$6.81
25-99$6.21
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector end for this adapter?

This right angle Type N male to female adapter features a compact profile ideal for limited space applications. This adapter can also be used to convert an in line to a 90 degree configuration by attaching to cable end.

L-com Item #AXA-NMNF90
ManufacturerL-com
UPC # (More)822335061729
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • Nickel plated body for enhanced corrosion resistance
  • Gold plated center contact for reduced signal loss
  • Right angle configuration useful in tight fit situations
Applications:
  • Coaxial Extension
  • Coaxial interface conversion
  • OEM coax applications
  • Coax retrofit applications

Specifications

Electrical
Impedance 50 Ohms
Frequency Range DC ~ 11 GHz
Voltage Rating 1500 Volts Peak
Dielectic Withstanding Voltage 2500 Volts RMS
Insertion Loss .15 dB Max.
Mechanical
Mating 5/8-24 UNEF Threaded Coupling
Mating Torque 15 inch pounds (170 N.cm) Max.
Material
Body Nickel Plated Brass
Contact Gold Plated Brass
Insulator TFE
Environmental
Temperature Range -55C(-67F) to +85C(+185F)
Temperature Cycling MIL-Std. 202 Method 102 (Test Condition C)
Weatherproof All N-Type Connectors are Weatherproof
Moisture Resistance MIL-Std. 202 Method 106 (Test Condition B)
Corrosion MIL-Std. 202 Method 101 (Test Condition C)
Vibration MIL-Std. 202 Method 204 (Test Condition B)
Altitude MIL-Std. 202 Method 105 (Test Condition C)
RoHS Compliant Yes

2D Drawing (.pdf)
3D CAD Model (.step)
