  2. Passive DWDM, Barrel-style OADM, 1 Ch 100 GHz, ITU Ch 20, 1.0m 900um buffer fiber leads

Passive DWDM, Barrel-style OADM, 1 Ch 100 GHz, ITU Ch 20, 1.0m 900um buffer fiber leads

SKU PDW5A-01120-19NN
QTY available Call us
Quantity Price
1 - 24 $58.99
25 - 49 $56.63
50 - 99 $54.86
100 + Call Us
Price $58.99

All Prices are in US Dollars and do not include duties

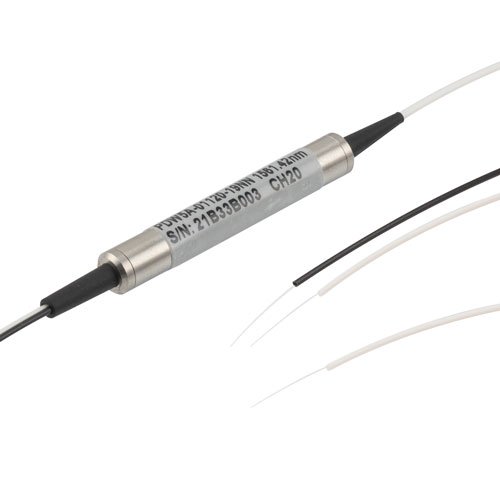

The L-com PDW5A-01120-19NN is a passive DWDM OADM for use in outside plant (OSP) applications. The PDW5A-01120-19NN features 1 channel (channel 20), with 100 GHz spacing. The L-com PDW5A-01120-19NN is a steel barrel-style filter with 36mm x 5.5mm round filter dimensions and 1.0m length fiber leads, with 900um buffered jackets. The PDW5A-01120-19NN design allows for -5 to 75C operating temperature and -40 to 85C storage temperature as well as operation in up to 95% relative humidity . The L-com PDW5A-01120-19NN is in stock and ready to ship. We require no MOQs (minimum order quantity).  We will process and ship your order the same day.

Features
  • Passsive DWDM OADM
  • 1 channel 100 GHz spacing
  • steel barrel-style filter
  • -5 to 75C operating temperature and -40 to 85C storage temperature
  • operation in up to 95% relative humidity

Application
  • Single Mode Fiber Networking
  • Metro transport
  • Regional Distribution
  • Outside Plant (OSP) Operation


Product Resources

Product Compliance

Product Compliance

REACH status
Not Available
RoHS status
Not Available
TSCA status
Not Available
PFAS status
Not Available

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance Department if that information can be obtained by clicking the contact us button below.
