Description

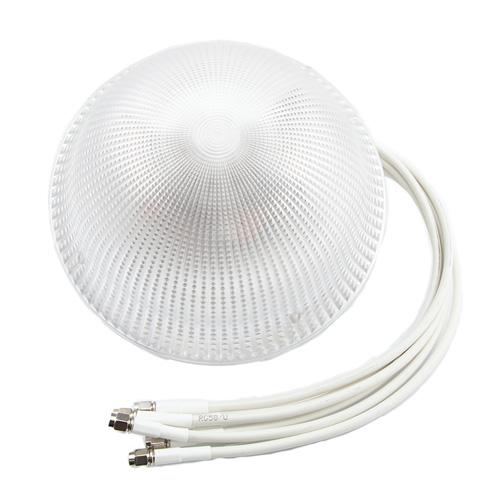

The L-com HG2458-4SDC-6RSP is a compact dual band omni-directional antenna specifically designed for MIMO (Multiple In / Multiple Out) applications.
The HG2458-4SDC-6RSP features a compact and unobtrusive UV resistant radome. Its modern design and aesthetics helps it blend into almost any environment or structure. The antenna measures 6 inches in diameter and just 2.8 inches in height.
Operating on both 2.4 GHz and 5.8 GHz frequencies, the HG2458-4SDC-6RSP from L-com is ideal for use with 2x2, 3x3, 4x4 and 6x6 MIMO radios since the HG2458-4SDC-6RSP features six separate 18 inch (1.5 foot) antenna leads terminated with Reverse Polarity SMA (RP-SMA) male connectors. Each lead is dual band and supports both 2.4 GHz and 5.8 GHz.
This antenna’s construction features a durable UV resistant ABS radome for durability and ruggedness. Its mounting system is optimized for ceiling mount with an integrated nut and screw.
This 2.4 / 5.8 GHz ceiling antenna, as well as our wide selection of superior quality RF parts, ship same day. Contact our knowledgeable and friendly technical support and sales staff for your answers on antennas or other L-com products.
Features
- Compact design
- Six dual band inputs via antenna leads with RP-SMA Plug connectors
- Dual frequency - 2.4 GHz & 5 GHz
- Compact/Aesthetic ceiling mount design
- MIMO - Multiple-Input and Multiple-Output
- Three (3) Integrated Spatial Diversity Antennas, single package
- 18in cable length
- Works with 1x2, 2x2, 2x3, 3x3, 4x4, 6x6 MIMO AP/Router
Application
- 1x2, 2x2, 2x3, 3x3 MIMO Access Points and Routers
- Hotels, Schools, Business Offices, HealthCare Facilities, Shopping Malls
- Indoor Wireless Hotspot
- 2.4 GHz Wireless LAN and WiFi Systems
- Supports IEEE 802.11b/g/n
