2.4/4.9-5.8 GHz, 8 dBi 4-Element Dual Polarized Flat Panel Antenna, (4) RP-SMA Plug Connectors

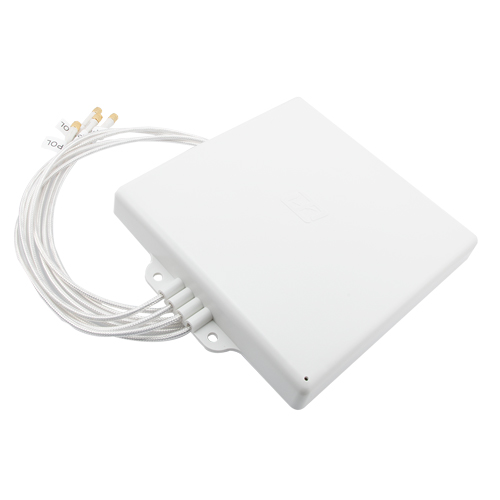

The L-com HG245808DP-4RSP36 Flat Panel Antenna combines four dual band antennas in a single housing. The unit consists of two vertically and two horizontally polarized multi-patch antennas. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 2.4 GHz and the 4.9-5.8 GHz frequency bands. The unit can be used with APs and Routers with one to four antenna ports.

This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radios to transmit and receive paths. This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.

Rugged and Weatherproof

This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. The HG245808DP-4RSP36 antenna is designed for wall mounting. An optional tilt and swivel mast mount kit can be purchased which allows for quick installation at various degrees of up/down tilt for easy alignment.

The HG245808DP-4RSP36 features four separate dual band antenna leads, two for horizontal polarization and two for vertical polarization. Terminated with RP-SMA Plug connectors, additional connector options are also available.

For additional information and complete specifications, click on the Data Sheet link in the Downloads section.
