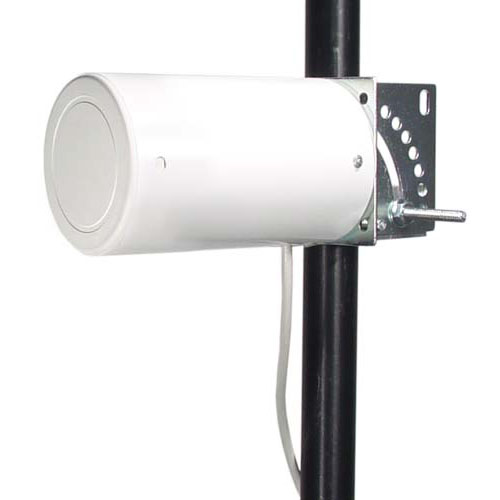

2.4 GHz 9 dBi Yagi Antenna - 12in N-Female Connector


ANT,Yagi 2.4GHz 9dBi N-Female
Roll over image to zoom in
ANT,Yagi 2.4GHz 9dBi N-Female ANT,Yagi 2.4GHz 9dBi N-Female ANT,Yagi 2.4GHz 9dBi N-Female
L-com Item # HG2409Y-NF

List Price$49.95
Your Price 1-9$49.95
10-24$45.95
25-99$41.96
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector for this antenna?

Superior Performance

The HyperGain HG2409Y Radome Enclosed Yagi WiFi Antenna features high gain and a 60° beam-width. It is ideally suited for directional and multipoint IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band. The unique design of this antenna allows it to be installed for either vertical or horizontal polarization.

Rugged and Weatherproof

This WiFi antenna is enclosed within a UV-stable, UL flame rated radome for all-weather operation.The HG2409Y antenna is supplied with a 60 degree tilt and swivel mast mount kit.



L-com Item #HG2409Y-NF
ManufacturerL-com
UPC # (More)822335065543
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • 12 inch coax lead terminated with a N-Female Connector
  • UV-stable, UL flame rated radome with 60° beam-width
  • DC Short lightning protection
  • Light weight, & includes tilt and swivel mast mount
  • Can be installed for either vertical or horizontal polarization
Applications:
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g, IEEE 802.11n Wireless LAN applications
  • Directional and multipoint applications
  • Bluetooth® & public wireless hotspot
  • WiFi & wireless video systems

Specifications

Electrical Specifications

Frequency

2400-2500 MHz

Gain

9 dBi

-3 dB Beam Width

60 degrees

Impedance

50 Ohm

Max. Input Power

50 Watts

VSWR

< 1.5:1 avg.

Lightning Protection

DC Short

Mechanical Specifications

Weight

.46 lbs. (.21 kg)

Dimensions
Length x Diameter

6 x 3 (inches)
152 x 76 (mm)

Radome Material

UV-inhibited Polymer

Flame Rating UL 94HB
Operating Temperature-40° C to 85° C
(-40° F to 185° F)

Mounting

1-1/4" (32 mm) to 2" (51 mm) dia. masts

Polarization

Vertical and Horizontal

Wind Survival

>150 MPH

RoHS Compliant

Yes

Wind Loading Data

Wind Speed (MPH)Loading
1004 lb.
1256 lb.

Antenna Gain Patterns
