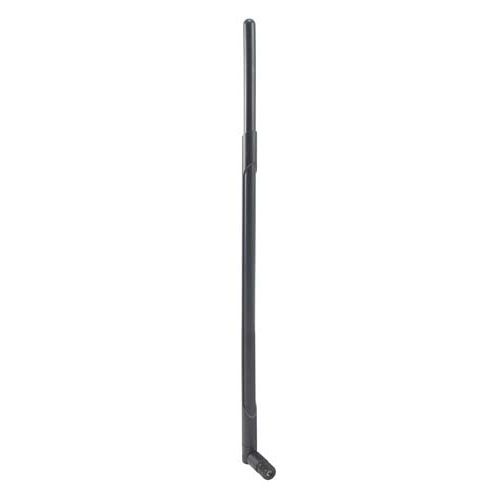

2.4 GHz 9 dBi Rubber Duck Antenna - RP-SMA Plug Connector


ANT,Rubber Duck 2.4GHz 9dBi
Roll over image to zoom in
ANT,Rubber Duck 2.4GHz 9dBi ANT,Rubber Duck 2.4GHz 9dBi
L-com Item # HG2409RD-RSP

List Price$25.00
Your Price 1-9$25.00
10-24$23.00
25-99$21.00
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector for this antenna?

This high performance 2.4 GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 9 dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth® and other WLAN applications.

Measuring 15.1" long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for radios, wireless video transmission and receivers, as well as digital spread spectrum radios.


L-com Item #HG2409RD-RSP
ManufacturerL-com
UPC # (More)822335075467
RoHS StatusNot Compliant At This Time (More)
Features:
  • High Performance - 9 dBi
  • Better performance than most stock AP antennas
  • Flexible "Rubber Duck" antenna with Tilt and swivel design
  • RP-SMA Connector
  • Optional Magnetic Mount Available
Applications:
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Public Wireless Hotspot
  • Wireless Video Systems
  • Multipoint and Mobile Applications & Bluetooth®

Specifications

Electrical Specifications

Frequency 2400-2500 MHz
Gain 9 dBi
Horizontal Beam Width 360°
Vertical Beam Width 25°
Impedance 50 Ohm
Max. Power 50W
VSWR< 1.5:1

Mechanical Specifications

Weight 2.1 oz. (60 g)
Length 15.1" (384 mm)
Max. Diameter 0.50" (12.7 mm)
Finish Matte Black
Connector Reverse Polarity SMA Plug
Operating Temperature-40° C to 60° C
(-40° F to 140° F)
Polarization Vertical
Flame Rating UL 94HB
RoHS Compliant Yes

Dimensions

RF Antenna Patterns
