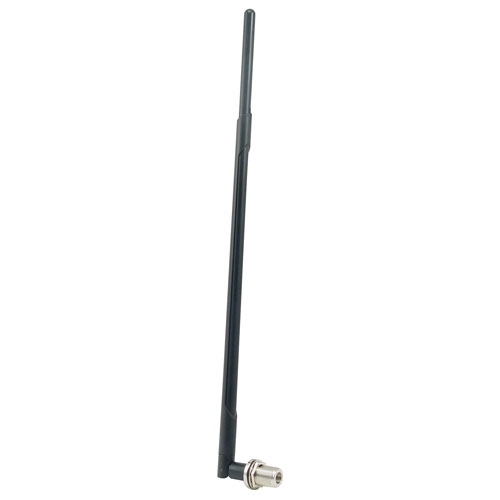

2.4 GHz 9 dBi Rubber Duck Antenna - N-Female Bulkhead Connector


ANT,Rubber Duck 2.4GHz 9dBi
Roll over image to zoom in
ANT,Rubber Duck 2.4GHz 9dBi ANT,Rubber Duck 2.4GHz 9dBi
L-com Item # HG2409RD-NFB

List Price$27.00
Your Price 1-9$27.00
10-24$24.84
25-99$22.68
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector for this antenna?

HyperGain "Rubber-Duck" Wireless LAN antennas provide broad coverage with an omni-directional pattern. All antennas feature tilt-and-swivel connectors and are available in models ranging from 1 dBi to 9 dBi.

L-com Item #HG2409RD-NFB
ManufacturerL-com
UPC # (More)822335067165
RoHS StatusNot Compliant At This Time (More)
Features:
  • High Performance - 9 dBi
  • Better performance than most stock AP antennas
  • Flexible "Rubber Duck" antenna
  • Tilt and swivel design
  • N-Female Bulkhead Connector
Applications:
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
  • Public Wireless Hotspot
  • Wireless Video Systems
  • Multipoint and Mobile Applications & Bluetooth®


Specifications

Electrical Specifications

Frequency 2400-2500 MHz
Gain 9 dBi
Horizontal Beam Width 360°
Vertical Beam Width 25°
Impedance 50 Ohm
Max. Power 50W
VSWR< 2.0:1
Lightning Protection DC Ground

Mechanical Specifications

Weight 2.3 oz. (65 g)
Length 15" (381 mm)
Max. Diameter 0.62" (15.7 mm)
Finish Matte Black
Connector N-Female Bulkhead
Operating Temperature-40° C to 60° C
(-40° F to 140° F)
Polarization Vertical

Flame Rating

UL 94HB

RoHS Compliant

Yes



RF Antenna Patterns
