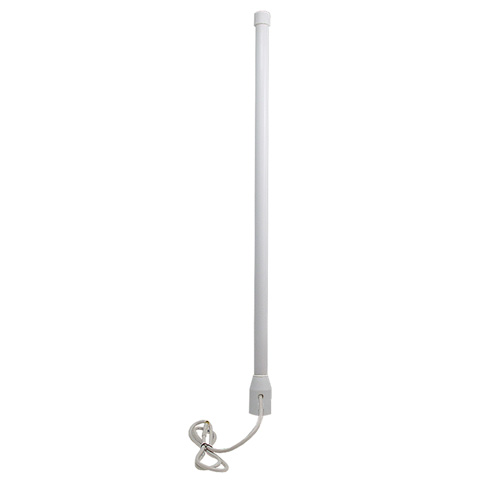

2.4 GHz 8.5 dBi Omni Marine Antenna - 3ft RP-SMA Plug Connector


ANT,Marine Omni 2.4GHz 8.5dBi
Roll over image to zoom in
ANT,Marine Omni 2.4GHz 8.5dBi ANT,Marine Omni 2.4GHz 8.5dBi
L-com Item # HG2409UM-RSP

List Price$135.00
Your Price 1-9$135.00
10-24$126.90
25-99$118.80
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector for this antenna?

Internet Access Everywhere!

Wireless internet access has grown far beyond the public hotspots regularly found in office building, restaurants and hotels. Campgrounds, RV parks and even your local marina are just some of the places offering these services. Mounted to your boat, camper or RV, the HG2409UM antenna will allow you to enjoy the benefits of wireless internet access.

High Performance

The HyperGain HG2409UM-RSP is a high performance omnidirectional WiFi antenna designed for the 2.4 GHz ISM band. This compact and lightweight antenna is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, public wireless hotspots, Bluetooth® and other multipoint applications where high gain and wide coverage is desired. Designed for marine applications, this antenna features a 3' side-fed coax lead with a reverse-polarity SMA Plug connector. The 1"-14 threaded base of this antenna allows it to be used with standard 1"-14 thread marine antenna mounts.

All Weather Operation

Constructed for all weather operation, the HG2409UM-RSP features sealed collinear brass elements inside a durable UV-stable machine white fiberglass radome. A sealed end cap and drain holes in the base help prevent moisture build-up inside the antenna.

Accessories

The HGX-MMOUNT01 marine antenna mount features white solid nylon construction. The four-way ratchet design allows it to be mounted to vertical or horizontal surfaces as well as straight or slanted surfaces. The standard 1"-14 antenna thread features a center-fed conduit for running cable.



L-com Item #HG2409UM-RSP
ManufacturerL-com
UPC # (More)822335075481
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • Durable UV-stable fiberglass radome
  • Compact, lightweight design, all weather operation
  • Sealed end cap and drain holes in base & optional Marine Mount available
  • Mounts to standard 1"-14 thread marine antenna mounts
  • Features side-fed 3' coax lead with Reverse Polarity SMA-Plug connector
Applications:
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN
  • Marine, RV and Campground Public Wireless Hotspots
  • Can be used on Boats, RV's and Campers
  • Multipoint and Mobile Applications

Specifications

Electrical Specifications

Frequency 2400-2500 MHz
Gain 8.5 dBi
Impedance 50 Ohm
VSWR < 2.0:1 avg.
Maximum Input Power100 W

Mechanical Specifications

Radome Color White
Polarization Vertical
Vertical Beam Width15°
Horizontal Beam Width360°
Weight 0.5 lbs. (.22 kg)
Length 21 in. (533 mm)
Base Diameter1.27 in. (3.22 cm)
Radome Diameter.75 in. (1.90 cm)
Radome MaterialFiberglass
Wind Survival >150 MPH
Operating Temperature-40° C to 85° C
(-40° F to 185° F)
Mounting1"-14 Thread
Antenna Connector3 ft coax lead w/ RP-SMA Plug
RoHS Compliant Yes

Wind Loading Data

Wind Speed (MPH) Loading
1004 lb.
1256 lb.

Antenna Gain Pattern
