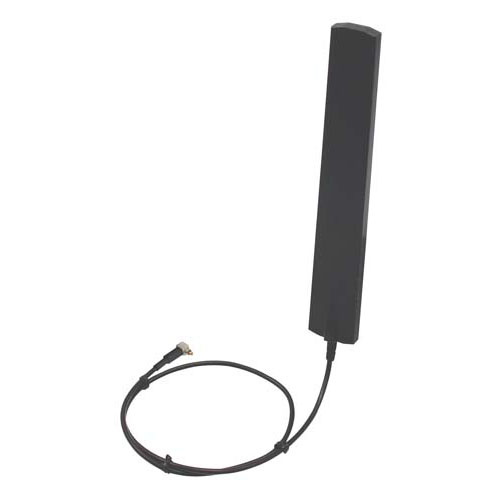

2.4 GHz 5 dBi Omni Blade Antenna - MC-Card Connector


RE,ANT,Omni 2.4GHz 5dBi
Roll over image to zoom in
RE,ANT,Omni 2.4GHz 5dBi RE,ANT,Omni 2.4GHz 5dBi RE,ANT,Omni 2.4GHz 5dBi
L-com Item # RE05ER-MC

List Price$15.95
Your Price 1-9$15.95
10-24$14.67
25-99$13.40
100 +Call Us
Availability: Call Us
Quantity
Need a different connector for this antenna?

This versatile flat blade WiFi antenna delivers an impressive 5dBi gain for optimum range and coverage. This omnidirectional antenna is an ideal choice for connecting handhelds and notebooks to public Hot Spots, where the additional gain and optimized antenna placement provide longer range and a more robust link. It is compatible with IEEE 802.11b, 802.11g and 802.11n wireless LAN systems operating in the 2.4GHz ISM band.

The RE05ER's rugged radome ensures this antenna can standup to abuse that other blade antennas cannot. Easy to use, the RE05ER is typically mounted using the included hook-and-loop tape or with double-sided tape.

This antenna features an integral 19" (482mm) low loss cable terminated with the appropriate radio connector, eliminating the need for a separate radio pigtail adapter.

Custom connectors can be ordered. Contact Hyperlink sales for more information.

This item is non-cancelable / non-returnable.


L-com Item #RE05ER-MC
ManufacturerL-com
UPC # (More)822335068650
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • 19" coax lead
  • Rugged composite radome
  • Compact size, 6.5" long
Applications:
  • 2.4 GHz ISM Band
  • IEEE 802.11b, 802.11g Wireless LAN
  • IEEE 802.11n (Pre-N, Draft-N, MIMO) Applications
  • Bluetooth® & Public Wireless Hotspot
  • WiFi & Wireless Video Systems

Antenna Specifications

Frequency

2400-2500 MHz

Gain

5 dBi

Impedance50 Ohm
VSWR< 1.5: 1 typical
Maximum Input Power10 W
Operating Temperature-40° C to 85° C
(-40° F to 185° F)
Dimensions6.5" x 1.0" x 0.2"
(165 x 25 x 5 mm)
Coax Lead Length 19" (482mm)
Weight0.08 lbs (0.03 kg)

Due to the nature of radio frequency propagation and the numerous factors that can affect operating range we do not guarantee that you will achieve any specific range for your application.
