Compact Weatherproof 10/100/1000 Base-T CAT6 Hi-Power Lightning Protector - RJ45 Jacks

Click image(s) to zoom

L-com Item # ALS-CAT6HPW

List Price		$62.99
Your Price 1-9		$62.99
10-24		$59.21
25-99		$55.43
100-249		$51.65
250-499		$47.87

Availability:

6/22/2013

Quantity

Need different lightning protector terminals?

Note: This protector replaces the AL-CAT6HPW.

The ALS-CAT6HPW Lightning Protector provides superior lightning and surge protection for indoor 10/100/1000 Base-T Ethernet networks. The unit has low line to line and line to ground capacitance to minimize distortion of high-speed signals. The design provides protection for both common and differential mode surges.

This protector has been designed to meet the GR-1089 Intra-Building surge protection requirements for 10/100/1000 Base-T Ethernet lines. In addition, the unit is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. This device supports PoE mode A and B for power. The ALS-CAT6HPW shielded RJ45 jacks are isolated from the safety ground. This minimizes the chance of a ground loop being introduced.

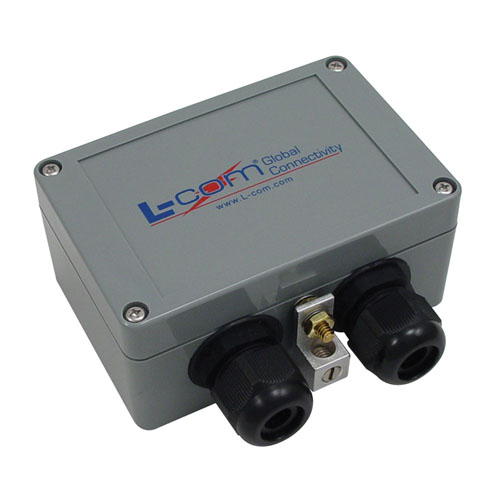

This unit features a weatherproof ABS enclosure with gasketed cover and concealed mounting holes. PG16 cable glands are provided on the enclosure as well as an external ground clamp to provide a tie point for earth ground. The PG16 cable glands are large enough to pass an un-booted RJ45 connector through so pre-terminated cables can be used.

For additional information and complete specifications, click on data sheet link below.

Not sure which level of protection is required for your application?
View Our Model Comparison Chart.

L-com Item #	ALS-CAT6HPW
Manufacturer	L-com
UPC # (More)	822335238046
RoHS Status	RoHS Compliant (More)
Power Rating (1=Low-Pwr to 5=Hi-Pwr)

Features:

CAT6, CAT5e and CAT5 compatibility
GR-1089 Intra-Building rated
Cable shield isolated from safety ground
IEEE 802.11af/at Power-Over-Ethernet (PoE) compatible
Weatherproof ABS enclosure with gasketed cover and shielded RJ45 jacks

Applications:

10/100/1000 Base-T Ethernet Equipment
Intra-building Cable Runs
Wireless Access Points & Bridges
Wireless Client Adapters
IP Cameras
