Single-Port CAT5e Passive Midspan/Injector with Hi-Pwr Surge Protection

Click image(s) to zoom

L-com Item # BT-CAT5E-P1-HP

List Price		$45.00
Your Price 1-4		$45.00
5-9		$42.30
10-24		$39.60
25-99		$36.90
100-249		$34.20
250 +		$31.50

Availability:

In Stock

Available for Same Day Shipping

Quantity

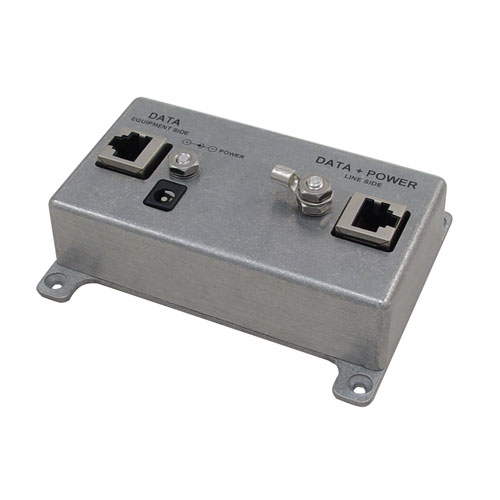

The BT-CAT5E-P1-HP Single-Port CAT5E Midspan/Injector (also known as PoE Passive Splitter) is a commercial grade Power-over-Ethernet device that provides DC or AC power for one 10/100 Base-T Ethernet Power-over-Ethernet, PoE equipped Network Appliance device. It is compatible with devices that support the IEEE 802.3af standard PoE power feed using Mode B (Pins 4/5 and 7/8). The unit supports both positive and negative DC as well as AC power up to 60 volts.

Integral High Power Surge Protection

The BT-CAT5E-P1-HP features integral surge protection for the data and power feeds. The unit eliminates the need for an external surge protector and is designed to provide protection for expensive indoor equipment. The design provides protection for both common and differential mode surges. This unit can also be used as a stand alone lightning surge protector.

The BT-CAT5E-P1-HP features shielded RJ45 jacks. This along with the BT-CAT5-P1J's metal housing helps reduce the effects of EMI interference. A ground lug and terminal is located directly on the injector housing providing superior grounding. The cast aluminum housing includes integral mounting feet for ease of installation.

This unit is also available in the following kits:

With 48VDC @ 48 Watt Power Supply - BT-CAT5E-P1-HP-4848
With 48VDC @ 70 Watt Power Supply - BT-CAT5E-P1-HP-4870

Outdoor version also available - BT-CAT5E-P1-HPW

L-com Item #	BT-CAT5E-P1-HP
Manufacturer	L-com
UPC # (More)	822335071582
RoHS Status	RoHS Compliant (More)

Features:

CAT5e and CAT5 compatibility
Surge Protection on all lines
GR-1089 Intra-Building rated
Cable shield isolated from safety ground
Up to 60 volts DC or AC power

Applications:

Wireless LAN Access Points and Bridges
IP Surveillance Cameras
Wired Switches
Wireless LAN Amplifiers

Specifications

Electrical Specifications

Max Voltage	60 Volts AC/DC
Max Current	1.5 A
Power Connector	Standard 2.5mm Coaxial DC Power Jack (2.5mm x 5.5mm x 10mm)
Ethernet Connectors	(2) Shielded RJ45 Jack
Data Lines	Pair 1: Pins 1 and 2 Pair 2: Pins 3 and 6
Power Lines	+/- VDC: Pins 4 & 5 +/- VDC: Pins 7 & 8
Data Clamping Voltage	Wire – Wire: +/- 15 Volts, Wire – Ground: +/- 90 Volts
Power Clamping Voltage	+/- 80 Volts
Shield Clamping Voltage	+/- 90 Volts

Mechanical Specifications

Enclosure Material	Cast Aluminum
Ground Lug	12 AWG Max.
Operating Temperature	-40 C (-40 F) to +70 C (+158 F)
Weight	.28 lbs. (.13 kg)
Dimensions	4.56 x 2.5 x 1.5 (inches) 114.3 x 63.5 x 38.1 (mm)
RoHS Compliant	Yes
