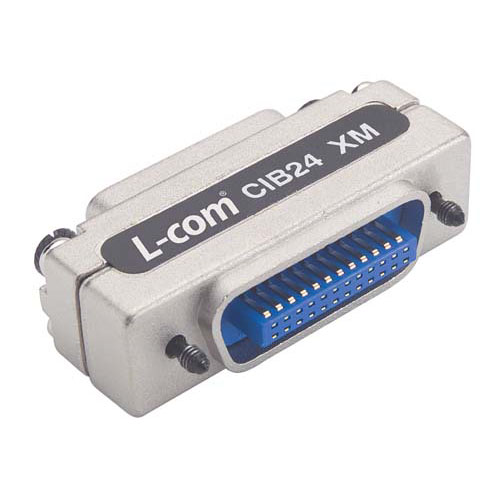

Modified IEEE-488 Extender, Male / Female


EXTENDER, GPIB MODIFIED FLANGE
Roll over image to zoom in
EXTENDER, GPIB MODIFIED FLANGE EXTENDER, GPIB MODIFIED FLANGE EXTENDER, GPIB MODIFIED FLANGE
L-com Item # CIB24XM

List Price$36.94
Your Price 1-9$36.94
10-24$33.98
25-99$31.03
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity

This unique extender has a modified male connector flange that is intentionally made shorter. Prevents problems in applications requiring plugging into a receptacle that is mounted on a thick panel that interferes and will not allow the connector to seat properly. Also provides a one inch extension allowing right angle cables that extra margin to clear nearby obstacles. Connectors are male to female and satisfy UL94V-0 flammability requirements. Quantity pricing available, please contact your L-com Sales Representative.

L-com Item #CIB24XM
ManufacturerL-com
UPC # (More)822335011045
RoHS StatusRoHS Compliant RoHS Compliant(More)
Connector OrientationNormal

warning WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Features:
  • Short male connector flange allows for mating to panel mounted female connectors
  • UL94V-0 rated connector insulator satisfies flammability requirements
  • 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
  • Cast aluminum housing provides durability
  • Connectors are male to female; mating hardware is M3.5 x 0.6 threaded
Applications:
  • Test and Measurement
  • Data Acquisition
  • Instrument Control
2D Drawing (.pdf)
3D CAD Model (.step)
