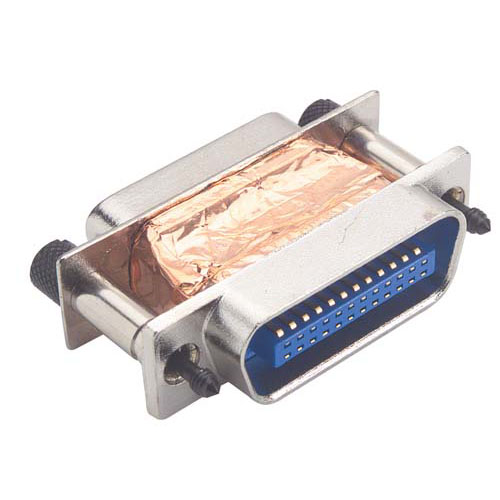

IEEE-488 Ultra Slimline Extender-Cast, Male / Female


EXTENDER, GPIB, ULTRA SLIM M/F
Roll over image to zoom in
EXTENDER, GPIB, ULTRA SLIM M/F EXTENDER, GPIB, ULTRA SLIM M/F EXTENDER, GPIB, ULTRA SLIM M/F
L-com Item # CIB24XE

List Price$24.91
Your Price 1-9$24.91
10-24$22.91
25-99$20.92
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity

These handy, hard to find extenders are normally used to provide a one inch extension allowing right angle cables that extra margin to clear nearby obstacles. Special 0.62" (CIB24XE) and 0.66" (DGE24XE) height allows for use with computers having narrow port openings. They can also be used as socket savers for expensive cables and ports by taking the abuse of frequently mated connectors. Connectors are male to female and satisfy UL94V-0 flammability requirements. Quantity pricing available, please contact your L-com Sales Representative.

L-com Item #CIB24XE
ManufacturerL-com
UPC # (More)822335011021
RoHS StatusRoHS Compliant RoHS Compliant(More)
Connector OrientationNormal
Features:
  • Provides a one inch clearance to extend GPIB ports
  • 0.62" height allows for use with computers or any port with narrow openings
  • Gold plated contacts provide reliable connections with repeated mating cycles
  • UL94V-0 rated connector insulator satisfies flammability requirements
  • Connectors are male to female; mating hardware is M3.5 x 0.6 threaded
Applications:
  • Test and Measurement
  • Data Acquisition
  • Instrument Control
2D Drawing (.pdf)
3D CAD Model (.step)
