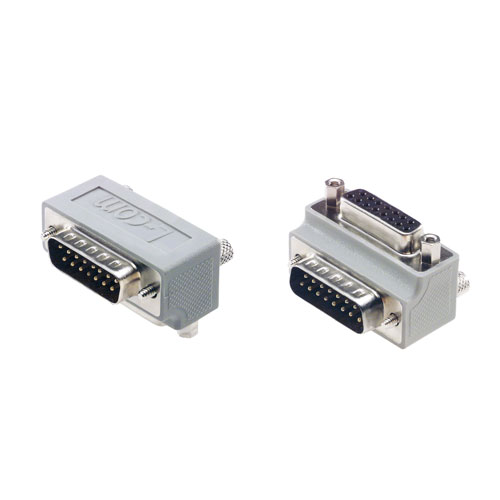

Low Profile Right Angle Adapter, DB15 Male / Female, Cable Exit 1



Click image(s) to zoom

Select View: Photo 3D

L-com Item # DG9015MF1

List Price		$8.00
Your Price 1-9		$8.00
10-24		$7.52
25-99		$7.04
100-249		$6.56
250-499		$6.08

Availability:

In Stock

Available for Same Day Shipping

Quantity

Need a different connector end for this adapter?

Connecting cables in tight spaces can be a problem in many applications. These low profile right angle D-Sub adapters solve this problem by allowing cables to be connected at a 90 degree angle. Three versions are available for each connector size allowing for cables to exit in opposite directions. Adapters are male to female, fully shielded and are overmolded with gray PVC. Mating hardware is reversible allowing for use in virtually any application.

L-com Item #	DG9015MF1
Manufacturer	L-com
UPC # (More)	822335065055
RoHS Status	RoHS Compliant (More)

Features:

Allows cables to mate at a 90 degree angle to avoid nearby obstructions
One inch low profile for optimum clearance allowance
100% shielding throughout for protection against EMI/RFI
Gold contact plating provides reliable connections with repeated mating cycles
Connector options are DB9, DB15, DB25, DB37 or HD15 male to female with three exit orientations

Applications:

D-Sub confined space
Enclosure applications
OEM applications

Catalog Page

2D Drawing (.pdf)

3D CAD Model (.step)
