Deluxe Data Line Monitor, DB25 Male / Female


TSTR, EIA232 DL MTR DB25 M/F
Roll over image to zoom in
TSTR, EIA232 DL MTR DB25 M/F TSTR, EIA232 DL MTR DB25 M/F TSTR, EIA232 DL MTR DB25 M/F
L-com Item # DLMS-2

List Price$24.49
Your Price 1-9$24.49
10-24$22.53
25-99$20.57
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector end for this adapter?

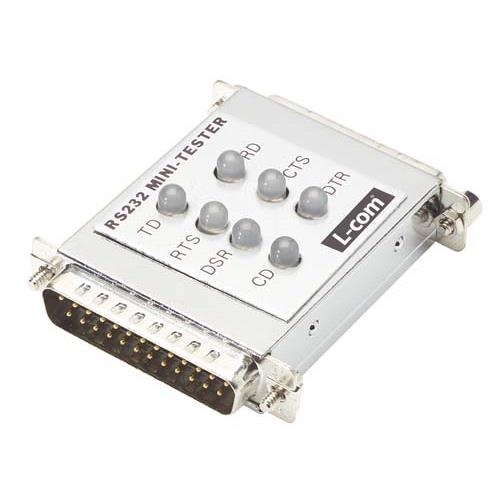

The DLMS-2 provides the user with the ability to determine the true status of the operating port. When the Data Line Monitor is inserted between the data terminal and the data transmission equipment, it continuously monitors and displays the seven most critical lines of the RS232 data path. The indicators show red for a positive high and green for a negative low. The monitored lines are: Transmit Data (TD) pin 2, Receive Data (RD) pin 3, Request to Send (RTS) pin 4, Clear to Send (CTS) pin 5, Data Set Ready (DSR) pin 6, Data Carrier Detect (DCD) pin 8, and Data Terminal Ready (DTR) pin 20. Each LED circuit draws about 3 ma and operates in the EIA range of 3.5 to 25 volts. The chrome plated metal enclosure provides shielding and can take extensive abuse.

L-com Item #DLMS-2
ManufacturerL-com
UPC # (More)822335021235
RoHS StatusRoHS Compliant RoHS Compliant(More)

warning WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Features:
  • Determines the status of operating ports by monitoring key data lines
  • Colored LEDs provide easy identification of data line status
  • Gold plated contacts provide reliable connections with repeated mating cycles
  • Fully shielded metal shell provides durability
  • Connectors are DB25 male to female
Applications:
  • Test
  • Telecommunications
  • RS-232
  • Serial
2D Drawing (.pdf)
3D CAD Model (.step)
