D-Sub Cable Application Guide

L-com takes pride in having the largest variety of D-Sub cables in the industry. The following selection guide is intended to assist you in selecting the right cable for your particular need.

Print and post this D-Subminiature Cable Application Guide by downloading a pdf here.

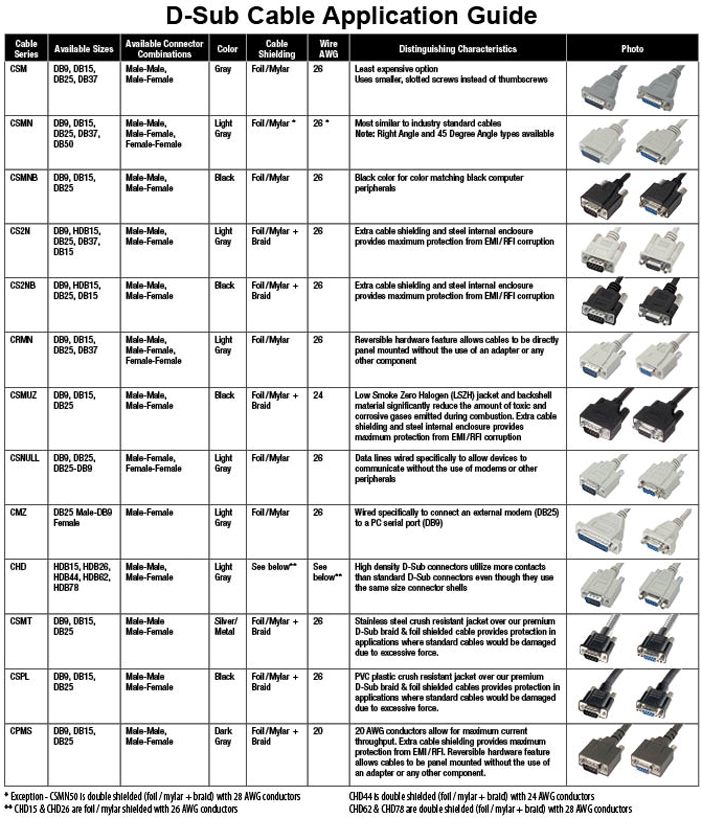

D-Subminiature Cable Application Guide

* Exception - CSMN50 is double shielded (foil/mylar + braid) with 28 AWG conductors
** CHD15 & CHD26 are foil/mylar shielded with 26 AWG conductors
CHD44 is double shielded (foil/mylar + braid) with 24 AWG conductors
CHD62 & CHD78 are double shielded (foil/mylar + braid) with 28 AWG conductors
